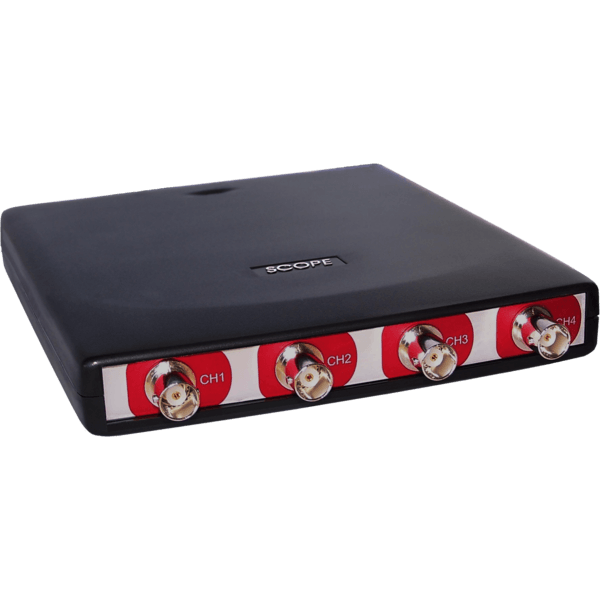

Handyscope HS4

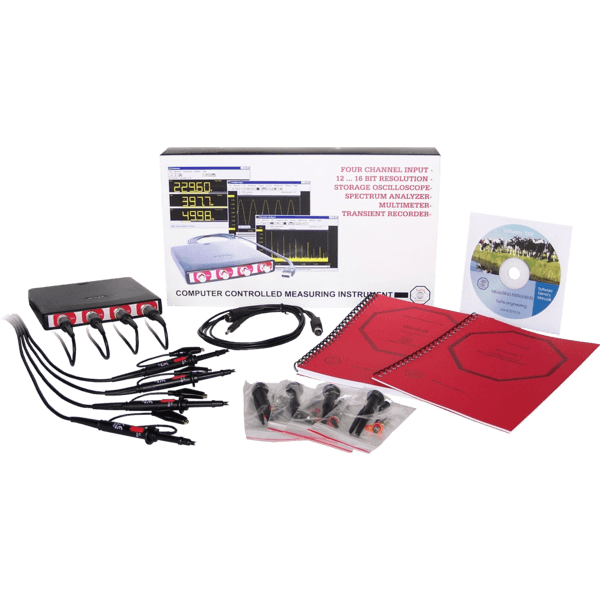

Handyscope HS4 Complete Set

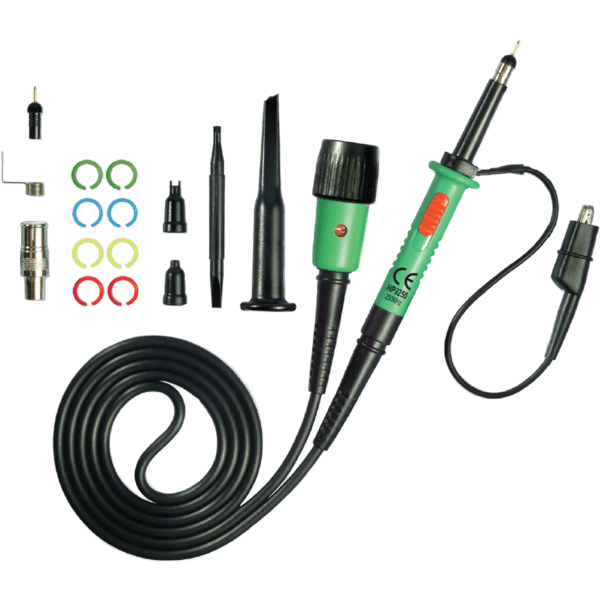

HP-3250I

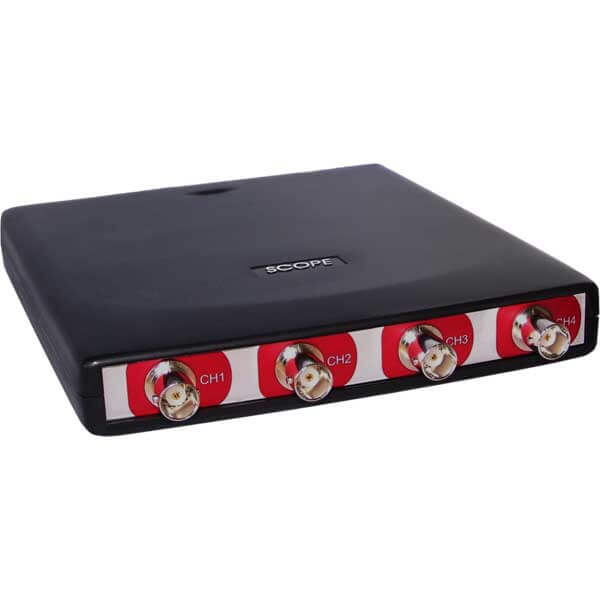

Handyscope HS4

$1,591.73 – $2,411.60 (converted)

Choose the model below:

SKU: N/A Category: Brand:

Description

This professional powerful computer controlled USB oscilloscope features four input channels.

The Handyscope HS4 oscilloscope features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV to 80 V full scale input range and 128 Ksamples record length per channel. Three Handyscope HS4 oscilloscope models are available, with a maximum sampling rate of respectively 10 MSa/s, 25 MSa/s or 50 MSa/s on all four channels simultaneously.

Fast continuous streaming

WiFiScope Front sideview

Besides measuring in block mode as oscilloscope, the Handyscope HS4 is also capable of performing continuous streaming measurements as data logger. This will create a continuous uninterrupted data stream to the computer. The data can then be displayed on the screen and/or saved to disk.

Combining multiple Handyscope HS4s

Synchronize oscilloscopes

When one Handyscope HS4 does not offer enough input channels, the Handyscope HS4 can be coupled to one or more other instruments. This allows to make a combined instrument which will enable simultaneous measuring on all channels of all combined instruments.

Features

Versatile Multi Channel oscilloscope software

The Handyscope HS4 is delivered with the versatile Multi Channel oscilloscope software, which transforms the Handyscope HS4 into an oscilloscope, spectrum analyzer, data logger, multimeter and protocol analyzer.

Some of the powerful features of the Multi Channel oscilloscope software are indicated below, for a full description of the Multi Channel oscilloscope software, refer to the Multi Channel oscilloscope software pages.

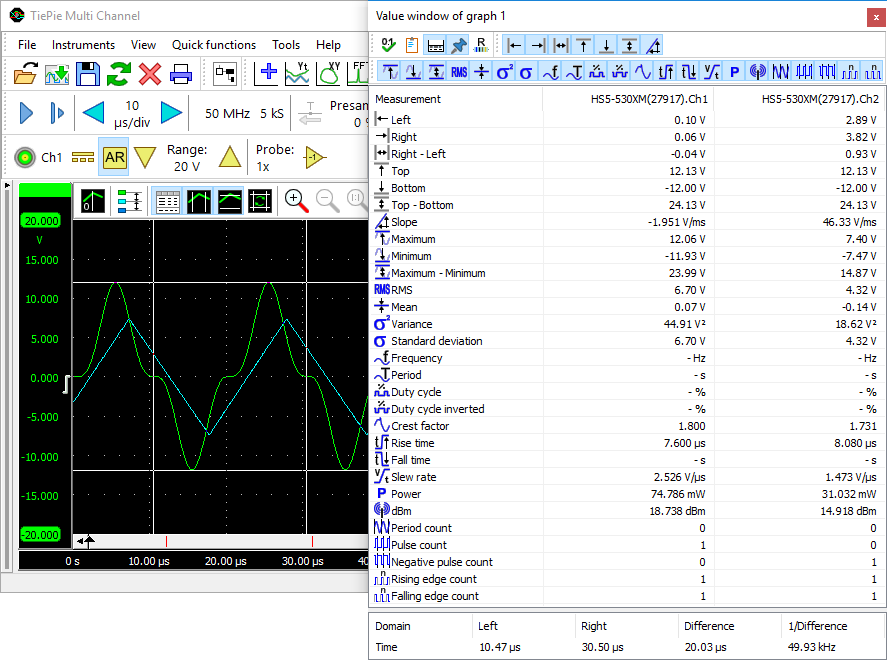

Many automatic measurements

The Multi Channel oscilloscope software features many automatic measurements, that can be performed on the measured signals of your Handyscope or on a selection of the measured signals. Using the automatic measurements in the oscilloscope, any detail of your signal is revealed. Two sets of cursors, both horizontal and vertical, can be used to indicate a part of the signal that needs to be examined thoroughly. The automatic measurements include e.g.: Mininum, Maximum, Top-Bottom, RMS, Mean, Variance, Standard deviation, Frequency.

The measurement results are shown in a special value window that can be positioned anywhere on your computer screen. A convenient toolbar allows you to enable or disable a measurement with a single click. The measurement results can be copied to the clipboard e.g. to use them in reports. When printing the graphs, the cursors and measurements results are also included.

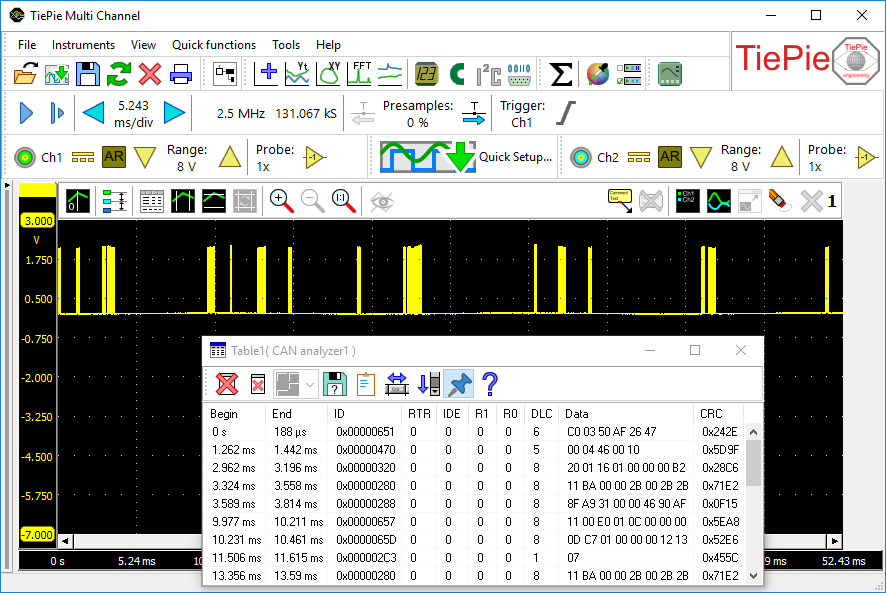

Analyze fast serial communication protocols

To analyze or debug your serial communications, simply measure the signal(s) transferring the protocol with your Handyscope and have them analyzed and decoded by one of the Multi Channel oscilloscope software protocol analyzers. The decoded information from the serial communications can be shown in tables, in graphs and in the multimeter.

A protocol analyzer is a useful tool when developing a hardware and/or software implementation of a communication bus. It can also be used when debugging device or bus failures.

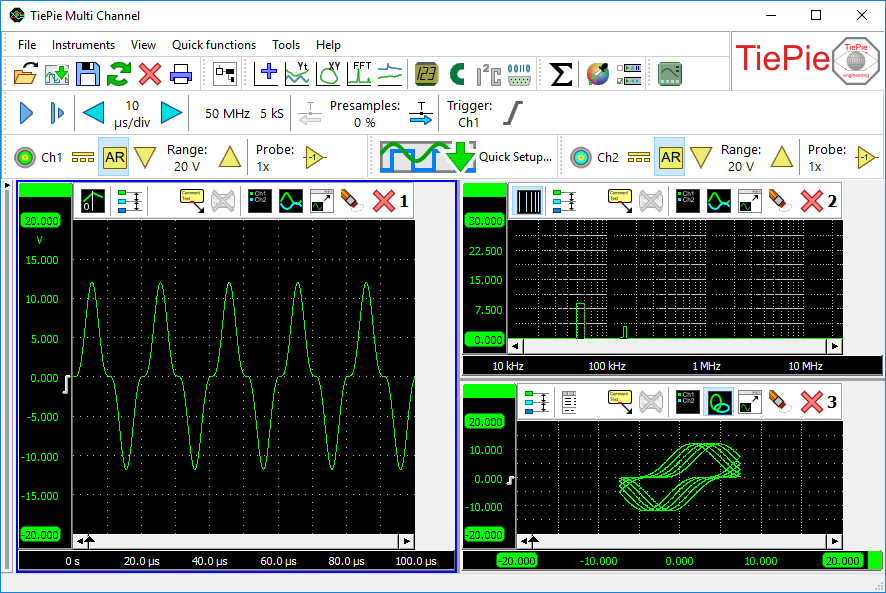

Flexible signal displays

The Multi Channel oscilloscope software scope, spectrum analyzer and datalogger offer an ultimately flexible way to display all aspects of the measured signals. They can have one or more graphs, each displaying one or more signals, where each graph can display different parts of a signal. Graphs can display the signal(s) of your Handyscope in Yt mode, in XY mode or as frequency spectrum, with or without interpolation. Colors of all items in a graph can be set to any required value. Graph dimensions can be adjusted to any required size, graphs can be located in one single window or in separate windows, which can be located anywhere on the desktop.

24/7 Data logging

Measuring long term signal changes with your Handyscope is done with the Multi Channel oscilloscope software Data logger. The data logger logs your signal, continuously uninterrupted at high speed, 24 hour a day, 7 days a week. Results are immediately shown on the screen and all data can be stored to disk. A convenient toolbar lets you navigate through the stored files to find the important moments in the measurement.

More features

To discover more features of the comprehensive Multi Channel oscilloscope software for your Handyscope HS4, visit the Multi Channel oscilloscope software pages for a full description.

Specifications

Handyscope HS4 specifications

Acquisition system
Number of input channels 4 analog
Ch1, CH2, CH3, CH4 BNC, female
Type Single-ended
Resolution User selectable in software
Native 12 bit
Enhanced 14, 16 bit
Accuracy 0.2 % of full scale ± 1 LSB
Noise 150 µVrms (200 mV range, 12 bit, 50 MSa/s)
450 µVrms (200 mV range, 16 bit, 195 kSa/s)
Ranges (Full scale) ±200 mV
±400 mV
±800 mV		 ±2 V
±4 V
±8 V		 ±20 V
±40 V
±80 V
Coupling AC/DC
Impedance 1 MΩ / 30 pF
Maximum input voltage (in all ranges) ±200 V (DC + AC peak < 10 kHz)
Maximum input voltage with 1:10 probe(in all ranges) ±600 V (DC + AC peak < 10 kHz)
Bandwidth (-3dB) DC to 50 MHz maximum
AC coupling cut off frequency (-3dB) 1 Hz with 1x probe
Maximum sampling rate HS4-50 HS4-25 HS4-10
12 bit 50 MSa/s 25 MSa/s 10 MSa/s
14 bit 3.125 MSa/s 3.125 MSa/s 3.125 MSa/s
16 bit 195.3 kSa/s 195.3 kSa/s 195.3 kSa/s
Maximum streaming rate HS4-50 HS4-25 HS4-10
12 bit 500 kSa/s 250 kSa/s 100 kSa/s
14 bit 480.8 kSa/s 250 kSa/s 99.2 kSa/s
16 bit 195.3 kSa/s 195.3 kSa/s 97.7 kSa/s
Sampling clock source
Internal Quartz
Accuracy ±0.01 %
Stability ±100 ppm over -40 °C to +85 °C
Time base aging ±5 ppm/year
External On extension connector
Voltage 3.3 V TTL, 5 V TTL tolerant
Frequency range 95 MHz to 105 MHz
Memory 128 Kpts per channel
Trigger Only available in scope/block mode, not in streaming mode
System Digital, 2 levels
Source CH1, CH2, CH3, CH4, OR, digital external
Trigger modes Rising edge, Falling edge
Inside window, Outside window
Level adjustment 0 to 100 % of full scale
Hysteresis adjustment 0 to 100 % of full scale
Resolution 0.025 % (12 bits)
Pre trigger 0 to 131071 samples, 1 sample resolution
Post trigger 0 to 131071 samples, 1 sample resolution
Trigger hold-off 0 to 1048576 Samples, 1 sample resolution
Digital external trigger
Input Extension connector
Range 0 to 3.3 V (5 V max)
Coupling DC

Interface
Interface USB 2.0 High Speed (480 Mbit/s); (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)

Power Requirements
Power from USB port 500 mA max (2.5 W max)
Power via external power input / extension connector 1500 mA max (7.5 W max)
Minimum voltage 4.5 VDC
Maximum voltage 12 VDC

Physical
Instrument height 25 mm (1 inch)
Instrument length 170 mm (6.7 inch)
Instrument width 140 mm (5.2 inch)
Cord length 1.8 m (70 inch)
Weight 480 g (17 ounce)

I/O connectors
Channel 1…4 BNC, female
USB fixed cable with USB 2.0 and USB 1.1 type A
Extension connector D-sub 25 pins female

System Requirements
PC I/O connection USB 2.0 High Speed (480 Mbit/s); (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)
Operating System Windows 10 / 11, 64 bits, and Linux (via libtiepie-hw SDK)

Operating Environment
Ambient temperature 0 to 55 °C
Relative humidity 10 to 90% non condensing

Storage Environment
Ambient temperature -20 to 70 °C
Relative humidity 5 to 95% non condensing

Certifications and Compliances
CE mark compliance yes
RoHS yes

Package
Instrument Handyscope HS4
Oscilloscope probes 4 x Oscilloscope Probe 1:1-1:10 – HP-3250I
Accessories external power cable for second USB port
Software Windows 10 / 11, 64 bits, via website
Drivers Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manuals instrument manual and software user’s manuals
color printed on paper and digital, via website

Models

The Handyscope HS4 is available in three different models that distinguish in maximum sampling rate and maximum streaming rate:

Order code Max. sampling speed Max. streaming speed
HS4-50 50 MSa/s 500 KSa/s
HS4-25 25 MSa/s 250 KSa/s
HS4-10 10 MSa/s 100 KSa/s

Available options for the Handyscope HS4 are:

  • W5: With the extended warranty option, warranty is five years on parts and labor. Without this option, the models have two years warranty on parts and labor.

Package contents

The Handyscope HS4 is delivered with:

Instrument Handyscope HS4
Probe 4x Oscilloscope Probe 1:1-1:10 – HP-3250I
Accessories external power cable for USB port
Software for Windows 10 / 11, 64 bits, via website
Drivers for Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manuals instrument manual and software user’s manuals
color printed and digital, via website

Downloads

Several downloads for the Handyscope HS4 are listed below, including Multi Channel oscilloscope software, drivers and manuals.

Driver & Software

Description Version Remarks Size
WinUSB driver 10.0.2 Windows 10 / 11, 64 bit 1.73 MB  download
Multi Channel software 1.48.0 Windows 10 / 11, 64 bit, including PDF manual 104.80 MB  download

Manuals & Documents

Description Version Remarks Size
Multi Channel software manual 1.11 English 3.13 MB  download
Handyscope HS4 Instrument manual 2.53 English 380.23 kB  download
Handyscope HS4 Brochure English 533.46 kB  download
Handyscope HS4 Data sheet English 1.38 MB  download

Software Development Kit (SDK)

Interfacing the Handyscope HS4 with third party software and developing own software requires the libtiepie-hw Software Development Kit. Detailed information on the libtiepie-hw SDK, downloads for Windows and Linux platforms and bindings and programming examples for various programming environments can be found in the libtiepie-hw pages.
