Pico Technology PicoScope 4425A Vehicle Assessor Kit (PQ222)

Pico PQ222 4425A Accessory Kit

$3,541.00

In stock

SKU: PQ222 Category: Tags: , , , , Brand:

Description

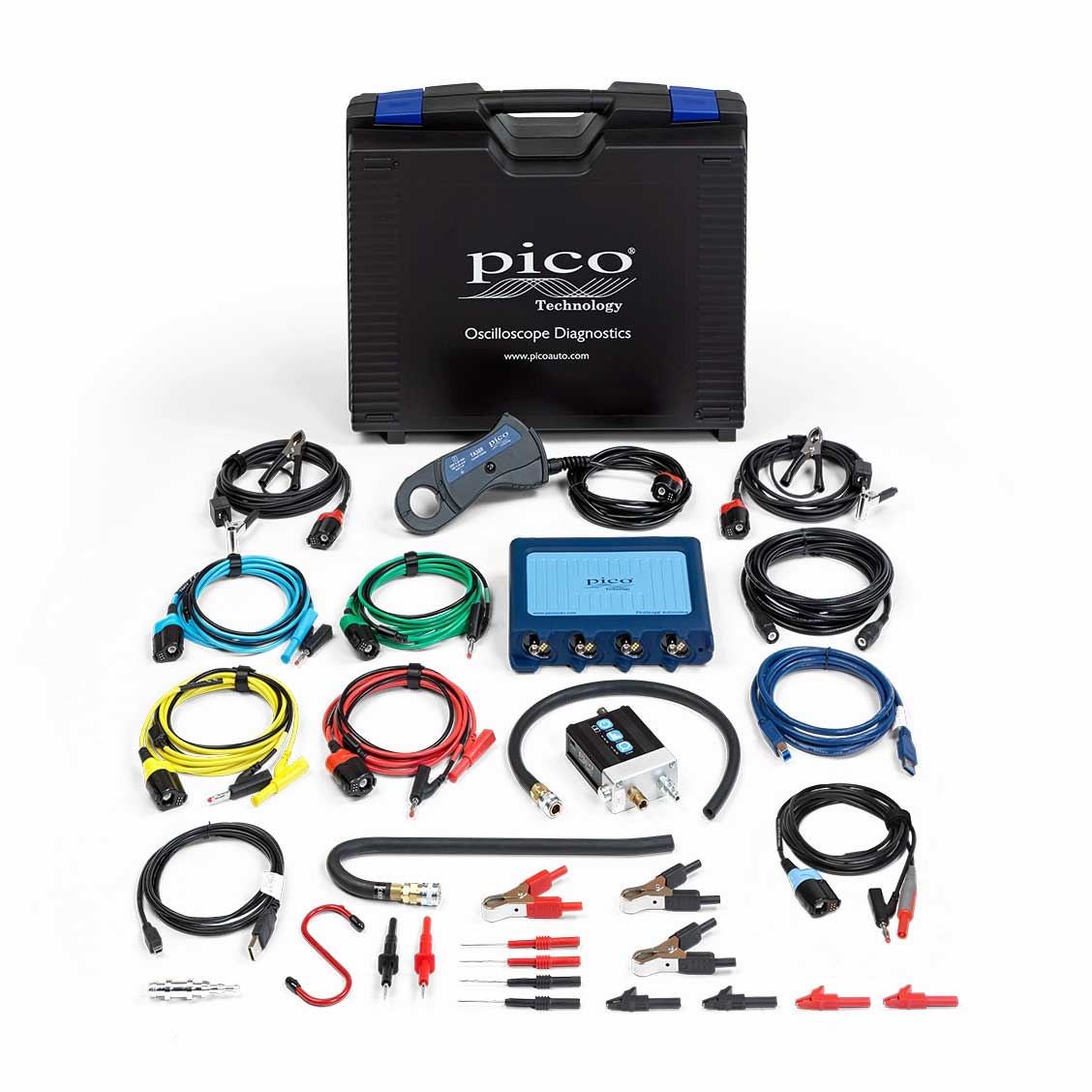

The PQ222 – PicoScope 4425A Accessory Kit is a versatile add-on package designed to expand the capabilities of the PicoScope 4425A for advanced automotive diagnostics. This kit includes the WPS500X pressure transducer, secondary ignition pickups, and a comprehensive set of PicoBNC+™ smart accessories, making it ideal for in-depth engine analysis, pressure waveform diagnostics, and high-current measurements.

• WPS500X Pressure Transducer: Allows precise in-cylinder, intake, and exhaust pressure waveform analysis.
• PicoBNC+™ smart accessories: Auto-detecting test leads and sensors streamline setup and improve measurement reliability.
• Secondary ignition testing: Includes PicoBNC+ ignition pickups for quick access to coil-on-plug and distributor systems.
• Comprehensive probe set: Multimeter probes, back-pinning tools, and large current clamp for a wide range of measurements.
• Protective storage: Includes a rugged carry case and dual QuadroPack cases to keep tools organized and secure.

This kit is an excellent choice for professionals who want to expand the diagnostic range of their PicoScope system with reliable and easy-to-use tools.

Specifications

  • Oscilloscope Compatibility: PicoScope 4425A (4-channel)
  • Pressure Sensor: WPS500X with multiple adapters included
  • Current Clamp: PicoBNC+ 2000A AC/DC
  • Test Lead Length: 3 meters, color-coded (Blue, Red, Green, Yellow)
  • Probe Voltage Rating: 1000V CAT III
  • Case Type: Carry Case + 2x QuadroPack telescopic cases
  • Connectivity: USB cable included with scope unit

Features

  • High-current measurement with 2000A clamp
  • In-cylinder pressure testing with WPS500X
  • Secondary ignition signal capture with PicoBNC+ pickups
  • Flexible and multimeter probes for precise signal access
  • PicoBNC+ auto-recognition and smart configuration
  • Insulated 4mm battery and crocodile clips for secure connections
  • Color-coded leads simplify channel identification

Applications

  • In-cylinder pressure waveform diagnostics
  • Secondary ignition testing (COP and distributor)
  • High-current system diagnostics (starter, charging systems)
  • Fuel system vacuum and pressure testing
  • Sensor signal and wiring integrity analysis
  • Automotive electrical system troubleshooting

Package Contents

PN Description QTY
MI168 S hook 1
PA211 Carry Case: 4425A Assessor Case 1
PQ174 PicoScope 4425A 4ch Scope only, w/USB cable 1
TA003 Small crocodile clip – black 2
TA004 Small crocodile clip – red 2
TA071 WPS500X 1
TA081 Charging Cable: USB A male to mini 5 pin 2m 1
TA085 Vacuum hose adapter for WPS500X 1
TA087 Exhaust adapter for WPS500X 1
TA130 Cable: insulated BNC to insulated BNC 5m 1
TA157 Battery clip 4mm socket (red) 1
TA158 Battery clip 4mm socket (black) 2
TA161 Flexible back pinning probe (black) 2
TA162 Flexible back pinning probe (red) 2
TA166 Large hose adapter 1
TA310 Multimeter style probe 1000V CAT lll (black) 1
TA311 Multimeter style probe 1000V CAT lll (red) 1
TA388 PicoBNC+ Current Clamp: 2000A AC/DC 1
TA397 PicoBNC+ Secondary Ignition Pickup 2
TA404 PicoBNC+ Test Lead: 4mm permanent ground, 3m Blue 1
TA405 PicoBNC+ Test Lead: 4mm permanent ground 3m, Red 1
TA406 PicoBNC+ Test Lead: 4mm permanent ground 3m, Green 1
TA407 PicoBNC+ Test Lead: 4mm permanent ground 3m, Yellow 1
PA038 QuadroPack telescopic plastic case 2
TA506 PicoBNC+ 10:1 Attenuating Test Lead 1
