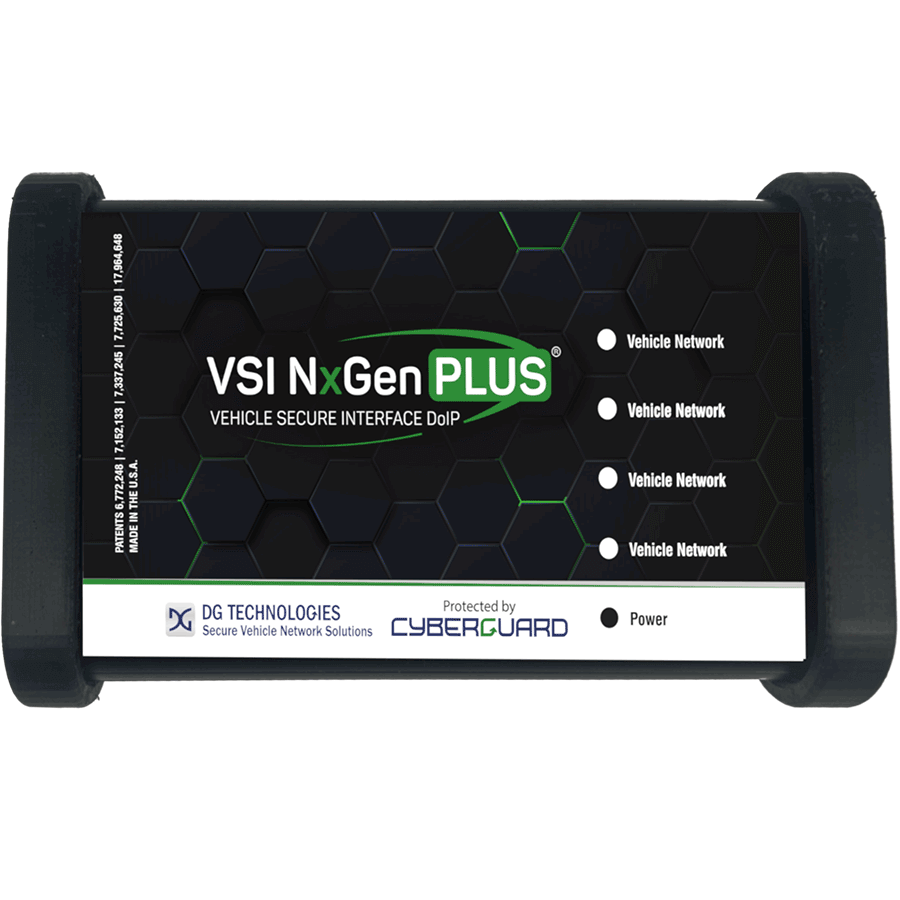

DG Tech VSI NxGen PLUS

DG Tech VSI NxGen PLUS

$1,595.00

Professional OEM-level J2534 pass-thru interface with DoIP and D-PDU support for modern vehicle diagnostics, programming, and pre/post scans.

SKU: DG-400-10946 Category: Tags: , , , , , Brand:

Description

Professional Automotive Diagnostic Scan Tool with D-PDU/DoIP

The DG Tech VSI NxGen PLUS is a professional J2534 pass-thru diagnostic and programming interface built for OEM-level diagnostics, ECU programming, calibrations, and pre-/post-repair scans. Designed for vehicles from 1996 to 2027 and beyond, it adds DoIP (Diagnostics over Internet Protocol) and D-PDU (ISO 22900-2) support for stronger compatibility with modern vehicle platforms and manufacturer software environments.

Tested and approved by more OEM’s than any other product on the market, the PLUS allows you to take care of every customer regardless of what vehicle they bring in. Proven support for SAE J2534 (v04.04, v05.00), DoIP Ethernet, ideal for large software updates and complex diagnostics (ISO 13400), and D-PDU (ISO 22900).

VSI NxGenPLUS logo

Features

  • Diagnostics over Internet Protocol (DoIP)
  • SAE J2534 API (v04.04, v05.00)
  • D-PDU API (ISO 22900-2)
  • PC-based, OEM-level diagnostics
  • Pre- and Post-Repair Scans
  • DG Diagnostics Software Included

Benefits

  • Professional automotive diagnostic scan tool for modern vehicles
  • Enables OEM software use through J2534 and D-PDU
  • Faster diagnostics using DoIP vehicle networks
  • Secure Firmware Solution Included
    • Securely update your products seamlessly
  • Backed by reliable, U.S.-based technical support

Specifications

  • Dimensions: 6.625 x 4.375 x 1.312 in
  • Voltage: 9–32 V DC
  • Current draw: 250 mA max
  • Operating temperature: -40 to +85 C
  • PC communication: USB 1.1 or higher
  • Vehicle-side connector: DB25 female
  • PC-side connector: Standard B-type USB
  • Additional port: Ethernet
  • Operating systems: Windows 10 / 11
  • Shipping dimensions: 12 x 10 x 4 in
  • Shipping weight: 4 lb

Protocols Supported:

  • SAE J2534 (Pass thru)
  • D-PDU (ISO 22900-2)
  • DoIP (ISO 13400-2)
  • ISO 15765 (CAN)
  • ISO 14230 (KWP2000)
  • ISO 14229
  • ISO 9141
  • MSCAN
  • J1850 PWM (Ford SCP)
  • J1850 VPWM (GM Class 2 & Chrysler)
  • CAN (ISO 11898, J2284)
  • GM LAN (HSCAN + SWCAN)
  • FT CAN
  • CAN FD
  • SAE J2610 (Chrysler SCI)

Applications

  • OEM ECU programming / reflashing
  • Manufacturer-level diagnostics
  • Pre-scan and post-scan procedures
  • Vehicle calibrations and service procedures
  • Late-model DoIP / Ethernet-based diagnostics
  • General pass-thru diagnostics for shop and dealership environments

OEM Compatibility

  • Mercedes
  • BMW
  • General Motors
  • Nissan
  • Ford
  • Stellantis
  • Honda
  • Toyota
  • Rivian
  • Volkswagen
  • Audi
  • Hyundai
  • Jaguar
  • Subaru
  • Mazda
  • Isuzu

Kit Contents

  • VSI NxGen PLUS device
  • OBDII cable
  • USB cable
  • Quickstart guide
  • J2534 VDA Validation Tool (JVT)
  • Carrying case

Comparison

DG Tech VSI NxGen vs VSI NxGen PLUS

Item VSI NxGen VSI NxGen PLUS
Vendor Part Number DG-400-10795 DG-400-10946
DG Direct Price $1,350.00 $1,595.00
SAE J2534 Yes Yes
DoIP No / not listed as core feature Yes
D-PDU GM only Yes
Ethernet Port No Yes
Modern Vehicle Coverage Strong general J2534 coverage Better suited for newer DoIP/Ethernet platforms
Best Fit General OEM diagnostics and programming Late-model diagnostics, DoIP workflows, broader modern compatibility
