Pico Technology PicoScope 4425A Master Kit (PQ194)

Pico PQ194 4425A Master Kit

$7,445.00

In stock

SKU: PQ194 Category: Tags: , , , , Brand:

Description

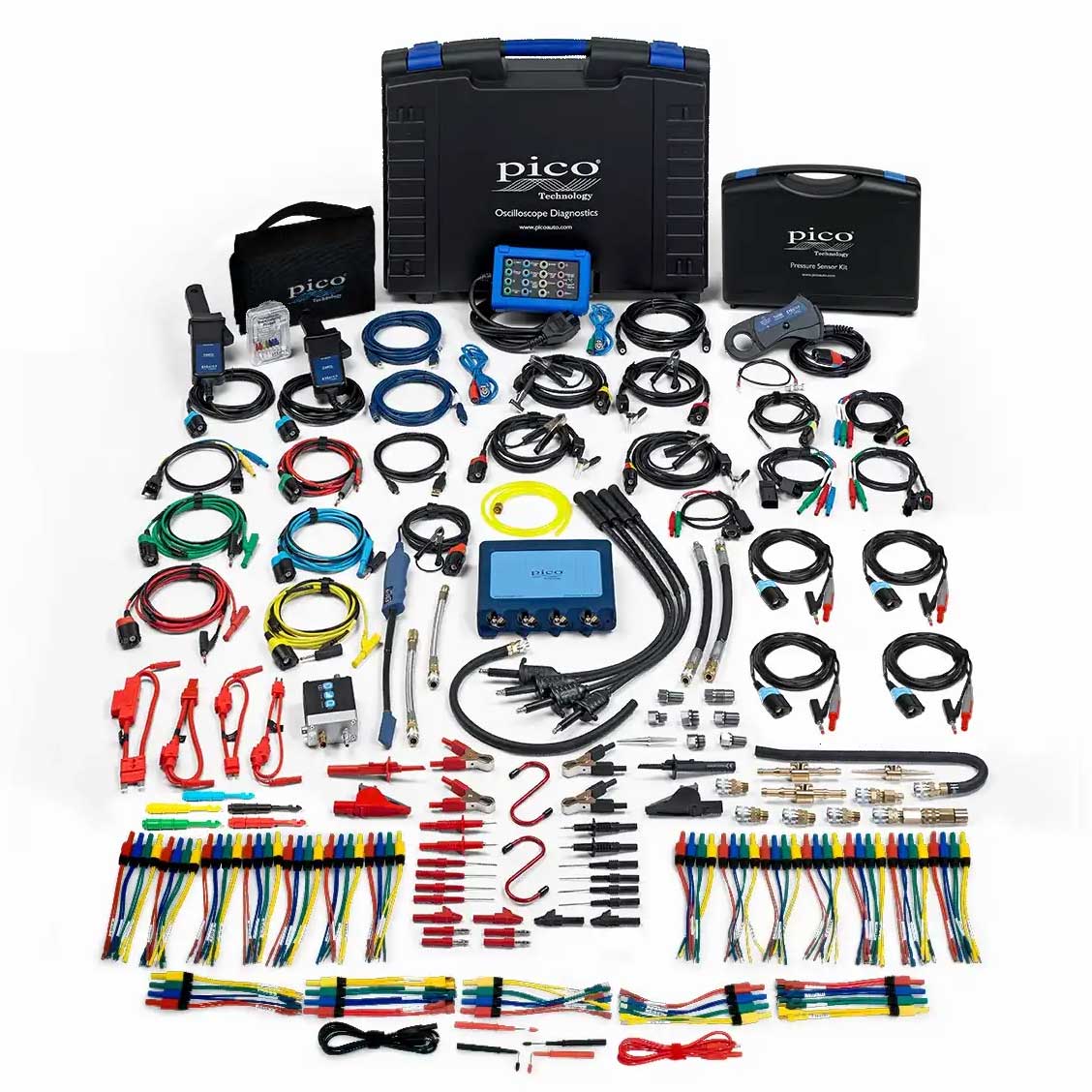

The PicoScope PQ194 4425A Master Kit is a comprehensive 4-channel automotive diagnostic kit. It includes the 4425A PicoScope module, a USB oscilloscope, along with an extensive range of accessories designed for advanced automotive diagnostics. These accessories typically include, but are not limited to:

• PicoBNC+™ test probes: High-quality probes for accurate signal acquisition.
• Current clamps: For measuring current flow in automotive circuits, including high-current clamps (up to 2000A AC/DC) and low-current clamps (60A AC/DC).
• Ignition testing accessories: Secondary ignition pickups, Coil-on-Plug (COP) probe, and HT extension leads.
• Flexible back-pinning probes and breakout leads: For easier access to connectors and circuits.
• Fuse extension leads: Adaptors for accessing various automotive fuses (ATC/ATO, Mini, JCASE, Maxi).
• General testing accessories: Multimeter-style probes, crocodile clips, and 10:1 attenuating leads.
• Pressure transducer and accessories: WPS500X pressure transducer with hoses and adapters for fuel, vacuum, and exhaust testing.
• Protective carrying cases: Heavy-duty and telescopic cases for convenient portability and equipment protection.

The exact contents may vary slightly depending on the supplier, but the core components remain consistent. This kit provides a powerful and versatile solution for automotive diagnostics, suitable for both professional and hobbyist use.

Specifications

  • 4-Channel Automotive Oscilloscope with PicoBNC+™ Interface
  • High-speed USB 2.0 Connectivity (USB 3.0 compatible)
  • Measurement Range: Up to ±2000A (with current clamps)
  • Voltage Range: ±200V (direct measurement, greater with probes)
  • Bandwidth: Up to 20 MHz
  • Memory Buffer: 512 MS
  • Input Connectors: PicoBNC+ Smart Probe Technology
  • Free Lifetime Software Updates (PicoScope Automotive Software)

Features

  • Smart Probe Interfacing with PicoBNC+™ Technology
  • Powered Probes Always Ready for Use
  • Channel Status Lights for Easy Identification
  • Comprehensive Accessory Kit for Various Diagnostic Needs
  • High-Resolution Waveform Capture and Analysis
  • Robust Carrying Cases for Equipment Protection
  • Compatibility with a Wide Range of Automotive Systems

Applications

  • Automotive Electrical and Electronic Diagnostics
  • Engine Performance Analysis
  • Fuel System Testing
  • Ignition System Diagnostics
  • Pressure Testing for Fuel, Vacuum, and Exhaust Systems
  • Sensor and Actuator Testing
  • CAN Bus and Communication Network Analysis
  • General Maintenance and Troubleshooting

Package Contents

PN DESCRIPTION QTY
DO157 WPS500X pressure transducer manual 1
DO336 PicoScope 4225A and 4425A Safety Guide 1
MI121 USB 2.0 Cable: PicoScope – blue, 4.5m 1
MI168 S hook 2
PA038 QuadroPack telescopic plastic case 2
PA094 WPS500X carrying case 1
PA210 Carry Case:4425A Heavy Duty Case 1
PQ174 PicoScope 4425A 4ch Scope only, w/USB cable 1
TA310 Multimeter Style Test Probe – black 2
TA311 Multimeter Style Test Probe – red 2
TA003 Small crocodile clip – black 2
TA004 Small crocodile clip – red 2
TA005 Large Dolphin Clip 1000v CATIII – black 1
TA006 Large Dolphin Clip 1000v CATIII – red 1
TA008 Back-Pinning Probe set 1
TA012 2 wire break out lead 1
TA016 4mm shrouded to unshrouded adaptor black 1
TA017 4mm shrouded to unshrouded adaptor red 4
TA034 ATC/ATO Fuse Extension Lead 1
TA035 Mini Fuse Extension Lead 1
TA037 HT extension lead 4
TA069 CAN test box only (no Adaptors) 1
TA071 WPS500X 1
TA081 Charging Cable: USB A male to mini 5 pin 2m 1
TA083 Fuel pressure test hose for WPS500, large Schrader valve 1
TA085 Vacuum hose adapter for WPS500X 1
TA086 Bleed hose for WPS500X pressure transducer 1
TA087 Exhaust adapter for WPS500X 1
TA089 Shrouded 4mm to Sprung hook – black 1
TA090 Shrouded 4mm to Sprung hook – red 1
TA106 Earth Wire for coil pack 45cm long 1
TA117 Fuel pressure test hose, small Schrader valve 1
TA129 Universal vacuum hose adapter 1
TA130 Cable: insulated BNC to insulated BNC 5m 1
TA142 Foster 2 series 1/8″ coupler w/valve, male NPT 1
TA157 Battery clip 4mm socket (red) 2
TA158 Battery clip 4mm socket (black) 2
TA161 Flexible back pinning probe (black) 4
TA162 Flexible back pinning probe (red) 4
TA166 Large hose adapter 1
TA168 JCASE Fuse Extension Lead 1
TA190 2-pin ACS Connector breakout lead 1
TA191 3 pin Kostal Connector breakout lead 1
TA194 2 pin Kostal Connector breakout lead 1
TA206 Maxi Fuse Extension Lead 1
TA212 Standard compression hose (for WPS500X, w/universal tip) 1
TA213 M10 Short Reach Adaptor for Standard Compression Hose 1
TA214 M10 Deep Reach Adaptor for Standard Compression Hose 1
TA216 M12 Deep Reach Adaptor for Standard Compression Hose 1
TA217 M14 Short Reach Adaptor for Standard Compression Hose 1
TA218 M14 Deep Reach Adaptor for Standard Compression Hose 1
TA219 M16 Ford Trition Adaptor for Standard Compression Hose 1
TA220 M18 Short Reach Adaptor for Standard Compression Hose 1
TA224 Adaptor AST to WPS500X compression hose 1
TA229 Adapter for WPS500X to AST equipment 1
TA250 WPS500X Adaptor Kit B 1
TA267 3-pin AMP superseal connector breakout lead 1
TA329 Ultrasonic parking sensor detector 1
TA330 Keyless entry carrier signal detector 1
TA388 PicoBNC+ Current Clamp: 2000A AC/DC 1
TA395 PicoBNC+ wide-range linear temperature probe 1
TA397 PicoBNC+ Secondary Ignition Pickup 4
TA398 PicoBNC+ Coil On Plug (COP) & Signal Probe 1
TA404 PicoBNC+ Test Lead: 4mm permanent ground, 3m Blue 1
TA405 PicoBNC+ Test Lead: 4mm permanent ground 3m, Red 1
TA406 PicoBNC+ Test Lead: 4mm permanent ground 3m, Green 1
TA407 PicoBNC+ Test Lead: 4mm permanent ground 3m, Yellow 1
TA432 PicoBNC+ Resistance Test Lead 1
TA473 PicoBNC+ Current Clamp: 60A AC/DC 2
TA514 PicoScope Professional Breakout Lead set 1
TA506 PicoBNC+ 10:1 Attenuating Test Lead 4
TA513 Set of 5 Pico Insulation piercing probes 1
PP972 Vacuum tap for WPS500X 1
PP973 Fuel hose pressure tap for WPS500X (small) 1
PP974 Fuel hose pressure tap for WPS500X (Medium) 1
