Pico Technology PicoScope 4425A-099 Off-highway Entry Kit (PQ324)

Pico PQ324 OHW Kit

$3,290.00

In stock

SKU: PQ324 Category: Tags: , , , , Brand:

Description

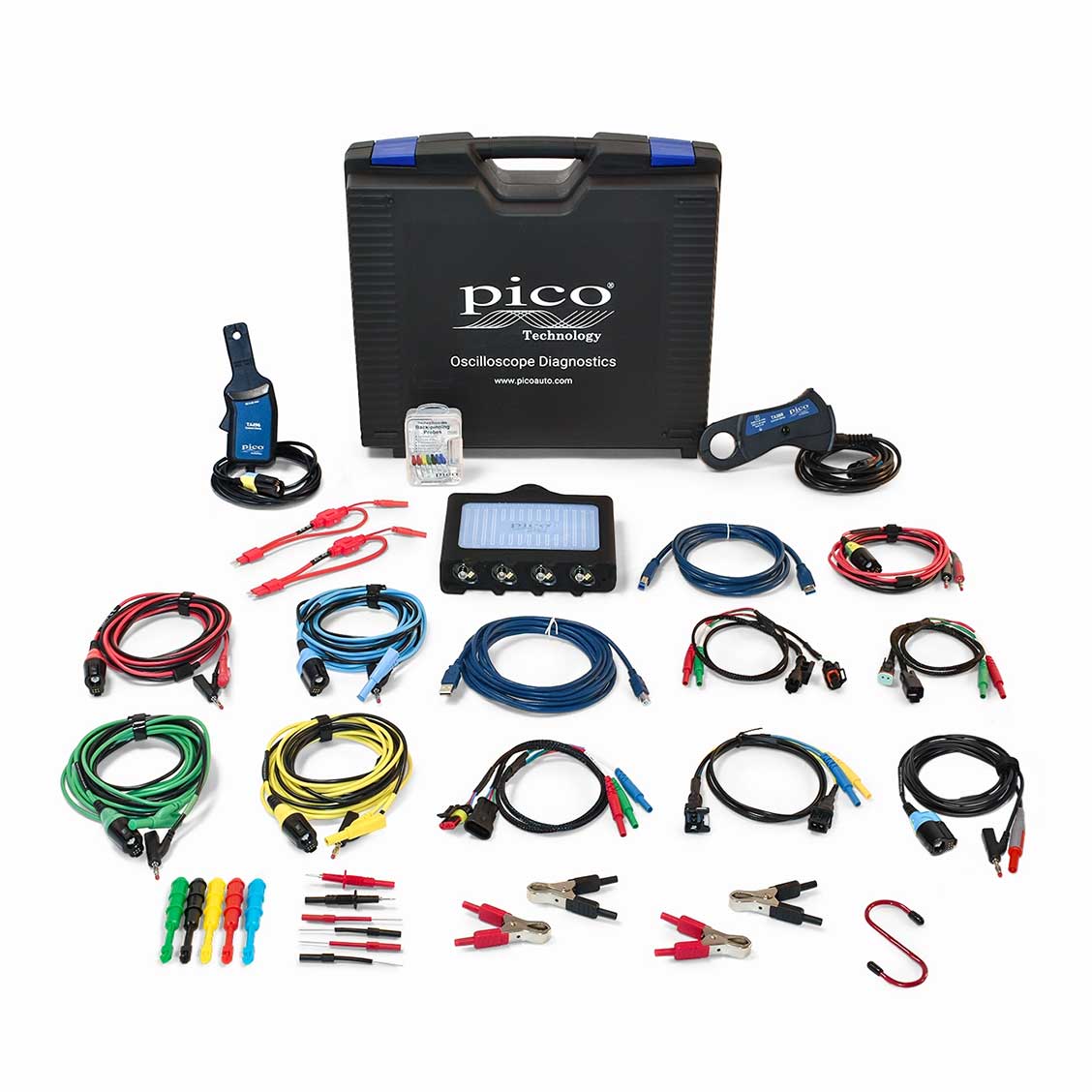

The PQ324 – PicoScope OHW Kit is a complete diagnostic solution for heavy-duty and off-highway vehicles. Designed to meet the demands of agricultural, construction, and industrial machinery diagnostics, this kit includes the 4-channel PicoScope 4425A along with a rugged set of accessories tailored for large engine and hydraulic systems. The OHW Kit delivers comprehensive capabilities for diagnosing electrical, hydraulic, and pressure-related faults in harsh operating environments.

• Engine and hydraulic diagnostics: Includes WPS600C hydraulic pressure transducer and high-current clamps for accurate system testing.
• Heavy-duty fuse breakout leads: Covers multiple fuse types common in commercial and off-highway vehicles.
• PicoBNC+™ smart accessories: Automatically recognized by the PicoScope for simplified setup and high measurement accuracy.
• Durable storage and protection: Kit comes housed in QuadroPack telescopic cases and a robust hard carry case for field reliability.
• Versatile testing capability: Support for voltage, current, resistance, temperature, ignition, and pressure waveform analysis.

Whether you’re servicing tractors, excavators, or forestry equipment, the PQ324 kit provides a mobile, high-performance platform for advanced diagnostics in demanding environments.

Specifications

  • Oscilloscope: PicoScope 4425A, 4-channel
  • Hydraulic Pressure Sensor: WPS600C, 0–600 bar range
  • Current Clamps: PicoBNC+ 2000A and 60A AC/DC
  • Ignition Tools: PicoBNC+ Secondary Pickup and COP probe
  • Fuse Breakouts: Maxi, JCASE, ATC/ATO, Mini
  • Lead Lengths: 3m PicoBNC+ test leads (Blue, Red, Green, Yellow)
  • Storage: Heavy-duty carry case + 2x QuadroPack telescopic plastic cases

Features

  • WPS600C for high-pressure hydraulic system diagnostics
  • Multiple fuse extension leads for diverse vehicle platforms
  • PicoBNC+ smart recognition and automatic setup
  • Temperature probe and resistance test lead for component monitoring
  • High-voltage and back-pinning probes for safe signal access
  • Color-coded channels for efficient workflow
  • Rugged storage cases for field transport and protection

Applications

  • Hydraulic system analysis and diagnostics
  • Heavy-duty engine troubleshooting
  • Electrical system fault tracing in OHW vehicles
  • CAN/LIN network diagnostics and signal decoding
  • Ignition waveform and coil diagnostics
  • Pressure testing across fuel and air systems

Package Contents

PN DESCRIPTION QTY
DO336 PicoScope 4225A and 4425A Safety Guide 1
PQ333 Off-Highway PS4425A-099 Scope Only 1
PA038 QuadroPack telescopic plastic case 2
TA157 Battery clip 4mm socket (red) 2
TA158 Battery clip 4mm socket (black) 2
TA161 Flexible back pinning probe (black) 2
TA162 Flexible back pinning probe (red) 2
TA012 2 wire break out lead 1
TA190 2-pin ACS Connector breakout lead 1
TA192 2 pin Deutsch breakout lead 1
MI121 USB 2.0 Cable: PicoScope – blue, 4.5m 1
MI168 S hook 1
PA209 Carry Case: 4425A Standard Case 1
TA008 Back-Pinning Probe set 1
TA034 ATC/ATO Fuse Extension Lead 1
TA035 Mini Fuse Extension Lead 1
TA267 3-pin AMP superseal connector breakout lead 1
TA388 PicoBNC+ Current Clamp: 2000A AC/DC 1
TA432 PicoBNC+ Resistance Test Lead 1
TA475 PicoBNC+ Test Lead: 4mm permanent ground 5m blue 1
TA476 PicoBNC+ Test Lead: 4mm permanent ground 5m red 1
TA477 PicoBNC+ Test Lead: 4mm permanent ground 5m green 1
TA478 PicoBNC+ Test Lead: 4mm permanent ground 5m yellow 1
TA496 PicoBNC+ Current Clamp 60A Small Jaw 1
TA506 PicoBNC+ 10:1 Attenuating Test Lead 1
TA513 Set of 5 Pico Insulation piercing probes 1
TA310 Multimeter style prod 1000V CAT lll (black) 1
TA311 Multimeter style prod 1000V CAT lll (red) 1
