Pico Technology PicoScope 4425A-099 Off-highway Expert Kit (PQ331)

Pico PQ331 OHW Expert Kit

$5,256.00

In stock

SKU: PQ331 Category: Tags: , , , , Brand:

Description

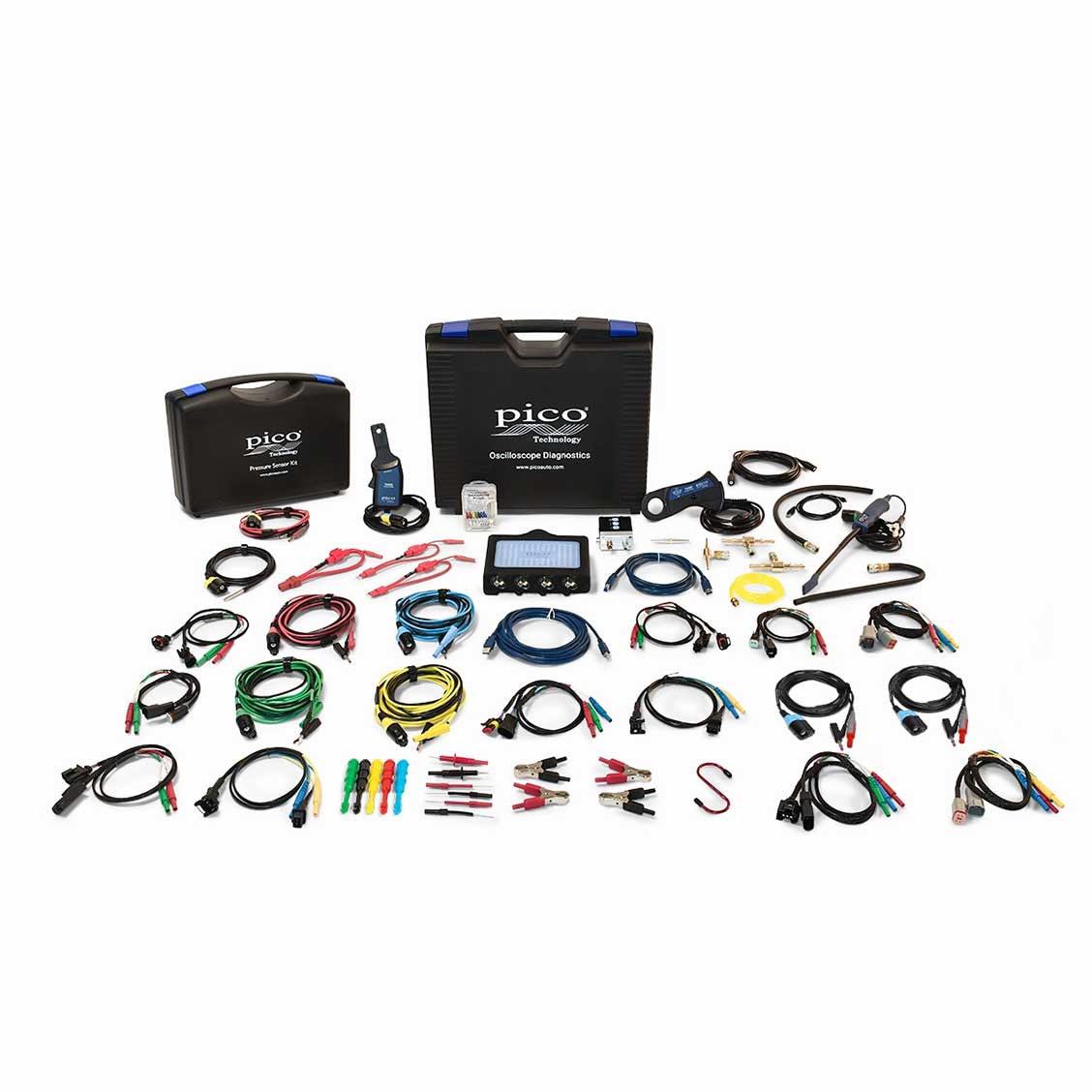

The PQ331 – PicoScope OHW Expert Kit is the ultimate diagnostic package for heavy-duty and off-highway vehicle professionals. Built around the powerful 4-channel PicoScope 4425A, this expert-level kit expands upon the standard OHW kit with additional probes, advanced testing tools, and a broader range of capabilities. It is specifically designed for in-depth diagnostics of electrical, hydraulic, and pressure systems in demanding environments such as agriculture, construction, and industrial equipment.

• Expanded hydraulic diagnostics: Includes both the WPS600C and WPS500X pressure transducers for testing a wider range of systems.
• High-current and low-current clamps: Supports diagnostics across large starter circuits down to small control wires.
• Enhanced ignition and sensor tools: Includes both COP and secondary ignition probes for complete engine analysis.
• Comprehensive fuse breakout set: Covers ATC, Mini, JCASE, and Maxi fuses used in heavy-duty vehicles.
• PicoBNC+™ intelligent interface: Auto-configuring leads and sensors enable quicker setup and accurate measurements.

Engineered for advanced users and diagnostic specialists, the PQ331 offers unmatched depth and flexibility when servicing complex off-highway systems.

Specifications

  • Oscilloscope: PicoScope 4425A, 4-channel
  • Pressure Sensors: WPS600C (0–600 bar), WPS500X (0–500 psi)
  • Current Clamps: PicoBNC+ 2000A and 60A AC/DC
  • Ignition Tools: PicoBNC+ Secondary Pickup, COP Probe
  • Fuse Extension Leads: ATC/ATO, Mini, JCASE, Maxi
  • Test Leads: Four 3m PicoBNC+ color-coded leads (Blue, Red, Green, Yellow)
  • Storage: Heavy-duty carry case + 2x QuadroPack telescopic plastic cases

Features

  • Dual pressure sensors for both hydraulic and fuel/air diagnostics
  • Smart PicoBNC+ interface with automatic probe recognition
  • Advanced ignition testing with both secondary and COP probes
  • Expanded current measurement range with 2000A and 60A clamps
  • Resistance and temperature measurement capabilities
  • Multi-fuse breakout support for complete vehicle coverage
  • Robust transport cases for mobile field use

Applications

  • Advanced diagnostics of OHW hydraulic systems
  • Engine ignition and performance analysis
  • Electrical fault detection in commercial and industrial vehicles
  • CAN, LIN, and sensor signal waveform analysis
  • Fuel, air, and brake pressure testing
  • Preventive maintenance and in-depth fault isolation

Package Contents

PN DESCRIPTION QTY
DO157 WPS500X pressure transducer manual 1
DO336 PicoScope 4225A and 4425A Safety Guide 1
MI121 USB 2.0 Cable: PicoScope – blue, 4.5m 1
MI168 S hook 1
PA094 WPS500X carrying case 1
PA209 Carry Case: 4425A Standard Case 1
PP972 Vacuum tap for WPS500X 1
PP973 Fuel hose pressure tap for WPS500X (small) 1
PP974 Fuel hose pressure tap for WPS500X (Medium) 1
PA038 QuadroPack telescopic plastic case 2
PQ333 Off-Highway PS4425A-099 Scope Only 1
TA008 Back-Pinning Probe set 1
TA012 2 wire break out lead 2
TA034 ATC/ATO Fuse Extension Lead 1
TA035 Mini Fuse Extension Lead 1
TA071 WPS500X 1
TA081 Charging Cable: USB A male to mini 5 pin 2m 1
TA085 Vacuum hose adapter for WPS500X 1
TA086 Bleed hose for WPS500X pressure transducer 1
TA087 Exhaust adapter for WPS500X 1
TA129 Universal vacuum hose adapter 1
TA130 Cable: insulated BNC to insulated BNC 5m 1
TA157 Battery clip 4mm socket (red) 2
TA158 Battery clip 4mm socket (black) 2
TA161 Flexible back pinning probe (black) 2
TA162 Flexible back pinning probe (red) 2
TA168 JCASE Fuse Extension Lead 1
TA190 2-pin ACS Connector breakout lead 2
TA191 3 pin Kostal Connector breakout lead 1
TA192 2 pin Deutsch breakout lead 2
TA193 4 pin Deutsch Connector breakout lead 1
TA194 2 pin Kostal Connector breakout lead 1
TA205 Breakout Lead 4 pin large Deutsch DTPxx-4 1
TA267 3-pin AMP superseal connector breakout lead 1
TA388 PicoBNC+ Current Clamp: 2000A AC/DC 1
TA395 PicoBNC+ wide-range linear temperature probe 1
PN DESCRIPTION QTY
TA398 PicoBNC+ Coil On Plug (COP) & Signal Probe 1
TA432 PicoBNC+ Resistance Test Lead 1
TA475 PicoBNC+ Test Lead: 4mm permanent ground 5m blue 1
TA476 PicoBNC+ Test Lead: 4mm permanent ground 5m red 1
TA477 PicoBNC+ Test Lead: 4mm permanent ground 5m green 1
TA478 PicoBNC+ Test Lead: 4mm permanent ground 5m yellow 1
TA496 PicoBNC+ Current Clamp 60A Small Jaw 1
TA506 PicoBNC+ 10:1 Attenuating Test Lead 2
TA513 Set of 5 Pico Insulation piercing probes 1
TA310 Multimeter style prod 1000V CAT lll (black) 1
TA311 Multimeter style prod 1000V CAT lll (red) 1
