TOPDON TC003

$539.00

In stock

SKU: TC003 Category: Tags: , , , , , , , , Brand:

Description

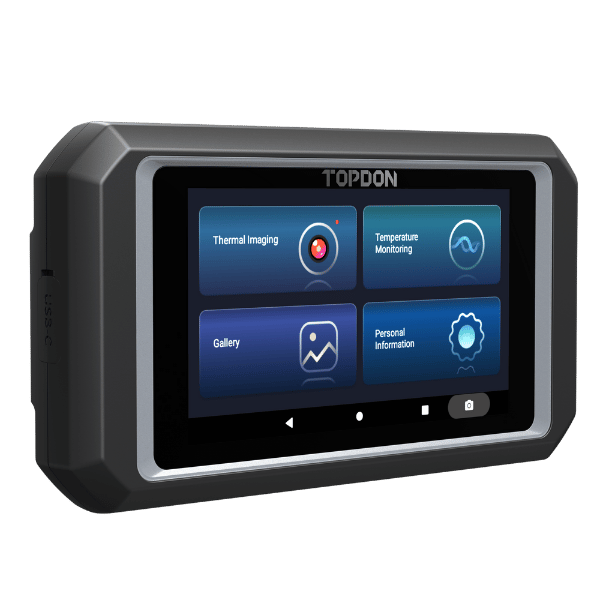

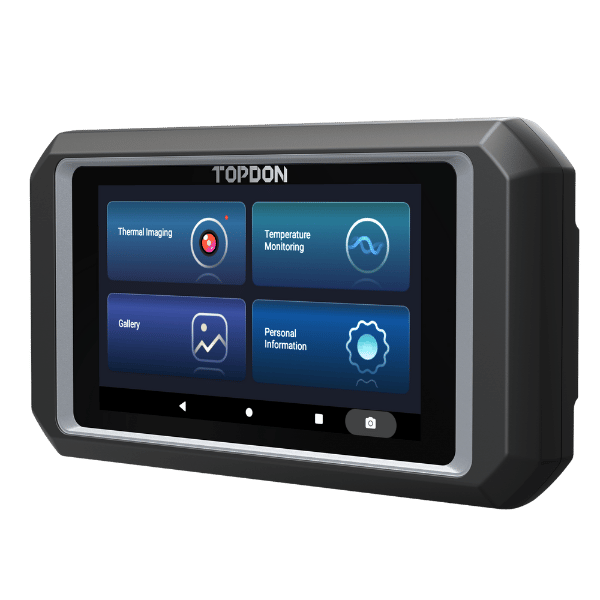

The TOPDON TC003 is a high-resolution thermal imaging camera designed for professionals across various industries. Featuring a 5-inch touchscreen, dual-camera system, and advanced thermal analysis capabilities, it offers precise temperature measurements and versatile imaging modes to meet diverse diagnostic needs.

Specifications

  • Model: TC003
  • Display: 5-inch touchscreen (800 x 480 resolution)
  • Infrared Resolution: 256 x 192 pixels
  • Visible Light Camera: 2-megapixel low-light night vision camera
  • Temperature Range: -20°C to 550°C (-4°F to 1022°F)
  • Temperature Accuracy: ±2°C or ±2%
  • Thermal Sensitivity (NETD): <40mK
  • Temperature Resolution: 0.1°C
  • Field of View (FOV): 56° x 42°
  • Frame Rate: 25Hz
  • Battery Capacity: 5000mAh
  • Battery Life: Up to 4 hours
  • Operating System: Android 11.0
  • Memory: 2GB RAM + 32GB storage
  • Connectivity: Wi-Fi, Bluetooth, USB-C
  • Dimensions: 178 x 96 x 20 mm (7.0 x 3.8 x 0.8 inches)
  • Weight: 900g (31.75 oz)
  • Durability: Drop-resistant up to 2 meters, IP55 water and dust resistance

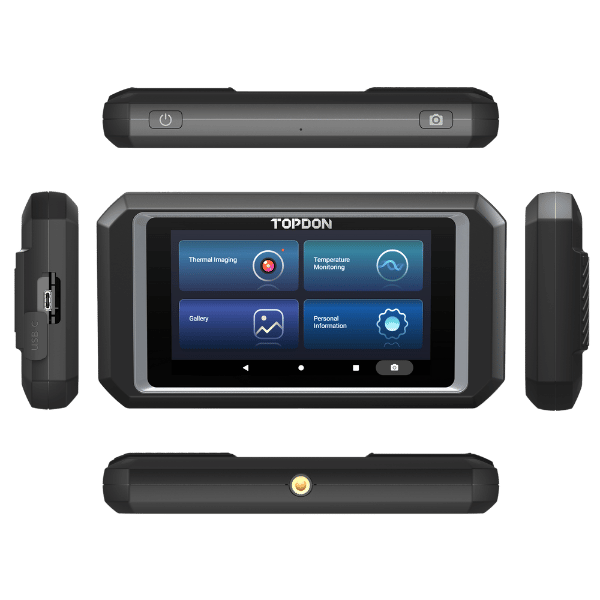

  • Additional Features: Built-in flashlight, speaker, screenshot and screen recording functions, tripod mount (1/4-20 UNC)

Features

  • High-Resolution Imaging: 256×192 infrared resolution provides sharp thermal images for detailed analysis.

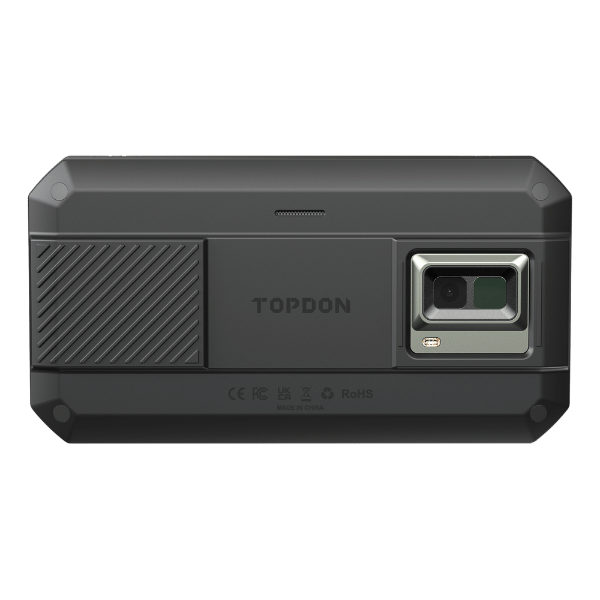

  • Dual-Camera System: Combines infrared and visible light cameras for enhanced imaging clarity.
  • Multiple Imaging Modes: Supports visible light, thermal imaging, thermal fusion, and outline fusion modes.
  • Temperature Analysis: Offers dot, line, plane, and full-view temperature reading modes with up to 3 areas per dimension.
  • Color Palettes: 11 selectable color palettes to customize thermal image displays.
  • Advanced Analysis: Perform secondary analysis on saved images, including pixel-level temperature readings and waveform graphing.
  • OTG Functionality: Connects to external devices like endoscopes and USB drives for expanded capabilities.
  • Temperature Correction: Adjusts for ambient temperature, distance to target, and emissivity for accurate readings.
  • Windows Compatibility: Compatible with Windows laptops via TCView software, offering 99 color palettes and expanded analysis tools.
  • User-Friendly Interface: Intuitive touchscreen interface with easy navigation and settings adjustment.

Applications

  • Automotive Diagnostics: Identify overheating components, electrical issues, and HVAC performance.
  • HVAC System Analysis: Detect temperature variations in heating and cooling systems for maintenance and troubleshooting.
  • Building Inspections: Locate insulation deficiencies, moisture intrusion, and electrical hotspots.
  • Electrical Maintenance: Monitor circuit boards, wiring, and components for temperature anomalies.
  • Agricultural Monitoring: Assess crop health, livestock conditions, and equipment performance.
  • Industrial Equipment Monitoring: Evaluate machinery and equipment for overheating and preventive maintenance.
