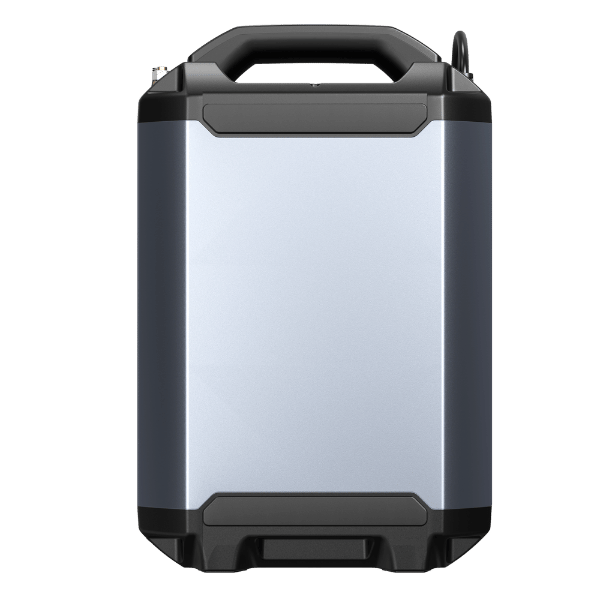

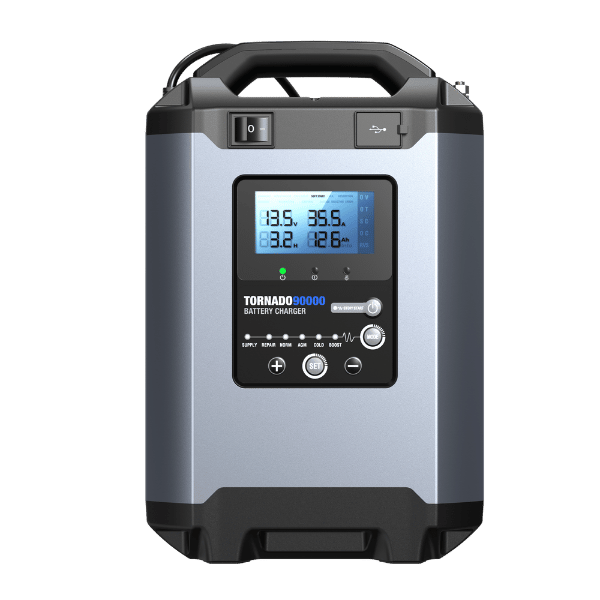

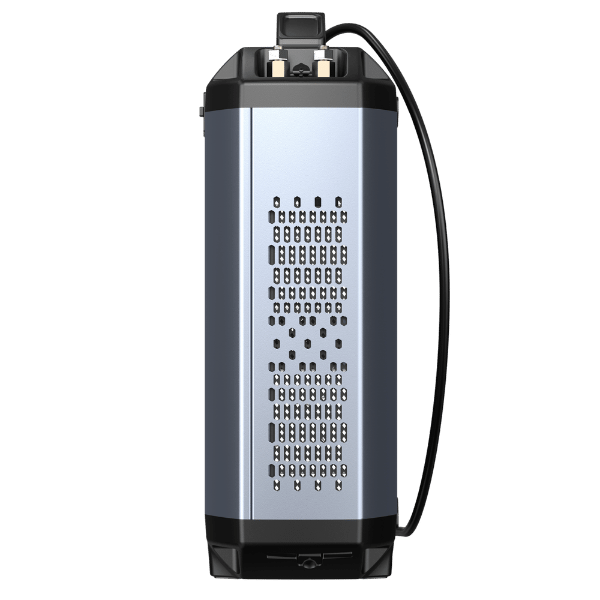

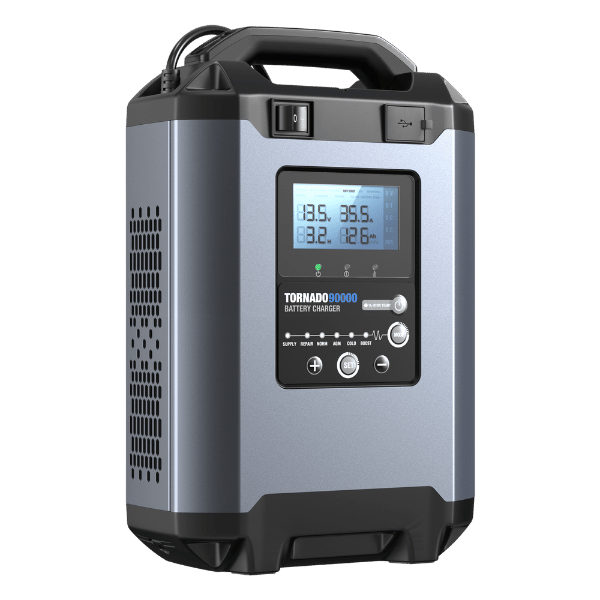

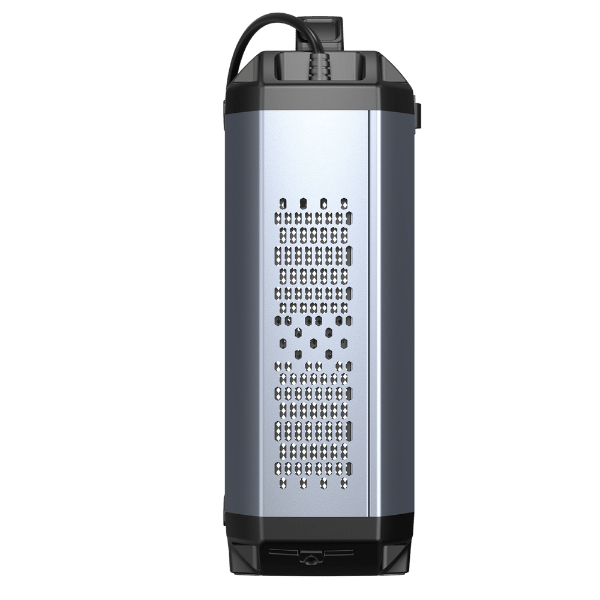

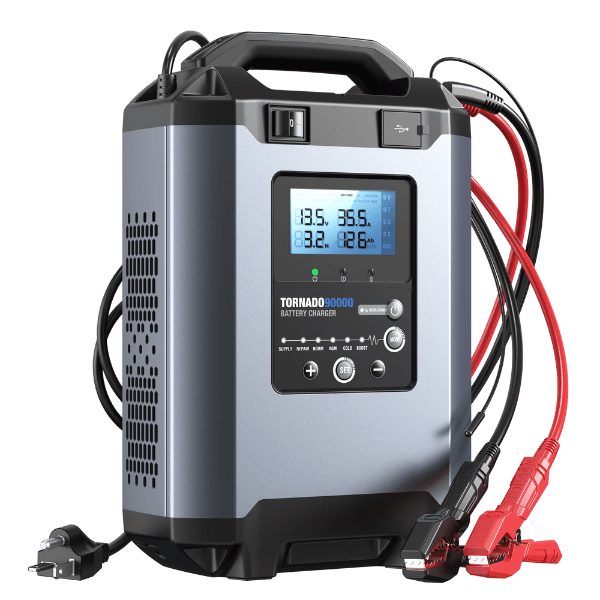

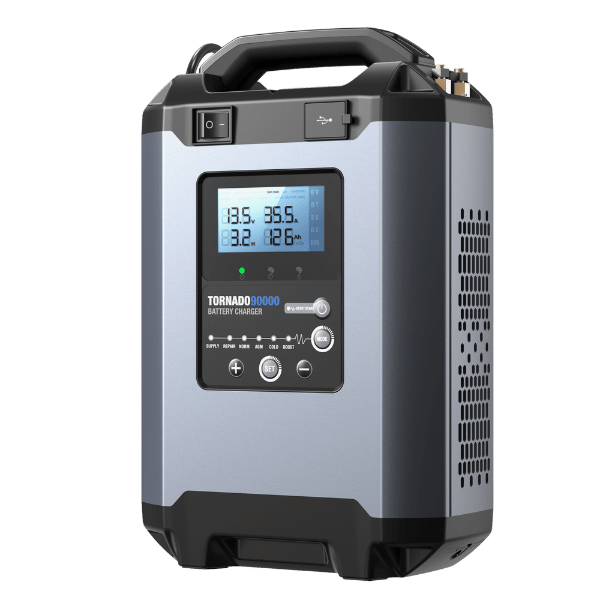

TOPDON Tornado 90000

Name: TOPDON Tornado 90000
Brand: TOPDON
SKU: T90000
Availability: InStock

$750.00

In stock

SKU: T90000 Category: TOPDON Battery Service Products Tags: 12V Battery Charger, 24V Battery Charger, Automotive Power Supply, Battery Reconditioning, ECU programming, Professional Battery Charger, Smart Battery Charger, TOPDON Tornado 90000 Brand: TOPDON

Description

The TOPDON Tornado 90000 is a professional-grade smart charger and power supply designed for 12V and 24V batteries. Featuring 6 programmable charging modes, 9-step smart charging, and dual temperature monitoring, it ensures optimal battery maintenance and safety for various applications.

Specifications

Input Voltage: 100-120V AC, 50-60Hz
Output Voltage: 12V/24V
Charging Current: 12V: 10A-90A; 24V: 10A-45A
Voltage Adjustment Range: 11-15.8V (12V); 22-31.6V (24V)
Efficiency: Approximately 85%
Power: Max 1500W
Battery Capacity Range: 20Ah to 2800Ah
Supported Battery Types: Wet, Gel, MF, EFB, AGM, CAL, VRLA, Lithium
Charging Modes: 6 modes including Supply, Normal, Cold, Boost, Repair
Protection Features: Reverse polarity, reverse charge, short circuit, overheating, over-voltage
Temperature Monitoring: Built-in and external sensors
Operating Temperature: 14°F to 104°F (-10°C to 40°C)
Storage Temperature: -4°F to 167°F (-20°C to 75°C)
Housing Protection: IP20
AC Cable Length: 1.8 meters
Clip Cord Length: 2.2 meters
Dimensions: 419.2 x 274.6 x 140 mm (16.50 x 10.81 x 5.51 inches)
Weight: Approximately 3 kg
Warranty: 3 years

Features

6 Programmable Charging Modes: Customize voltage and current settings to suit various battery types and conditions.
9-Step Smart Charging: Ensures safe and efficient charging by automatically adjusting the charging process.
ECU Programming Voltage Stabilizer: Provides stable DC output for ECU programming and other sensitive electronic operations.
Large Power Bank Functionality: Acts as a stable power supply for automotive appliances like tire inflators and car fridges.
Unmatched Compatibility: Supports a wide range of 12V and 24V batteries, including various lead-acid and lithium types.
Comprehensive Protection: Built-in safeguards against reverse polarity, reverse charging, short circuits, overheating, and over-voltage.
Dual Temperature Monitoring: Features both internal and external temperature sensors to prevent overheating and ensure safety.

Applications

Automotive Repair Shops: Ideal for charging and maintaining various vehicle batteries.
Fleet Maintenance: Suitable for managing the battery health of commercial vehicle fleets.
Mobile Technicians: Portable design allows for on-site battery diagnostics and charging.
ECU Programming: Provides stable voltage necessary for safe ECU programming procedures.
Battery Reconditioning: Repair mode helps rejuvenate and extend the life of old or degraded batteries.
Power Supply Needs: Serves as a reliable power source for automotive accessories and equipment.

Downloads

Product Manual
