WiFiScope WS6 DIFF

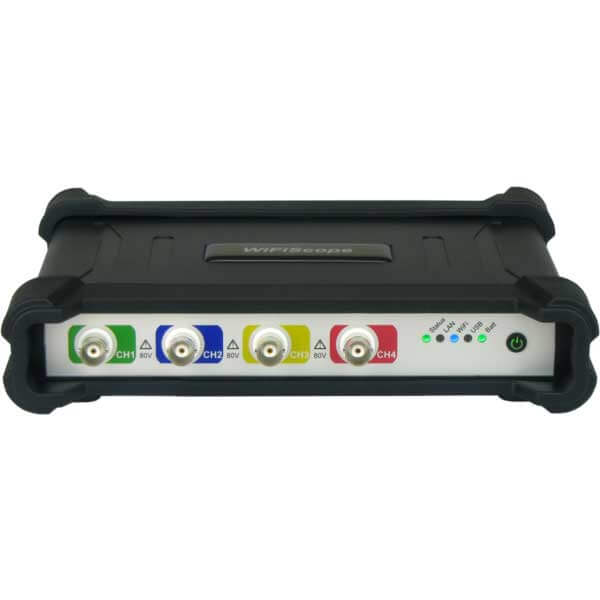

WiFiScope WS6 DIFF Front

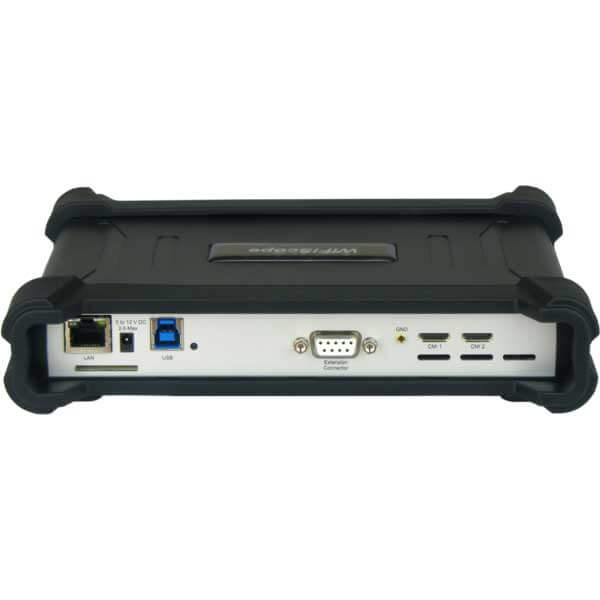

WiFiScope WS6 DIFF Rear

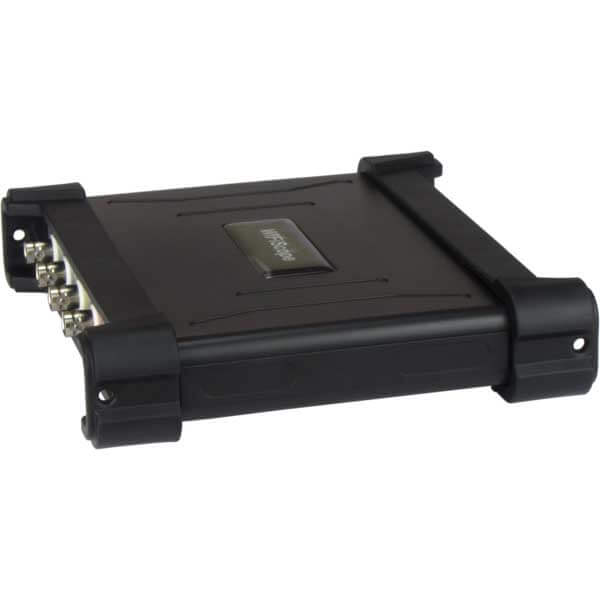

WiFiScope WS6 DIFF Front Side

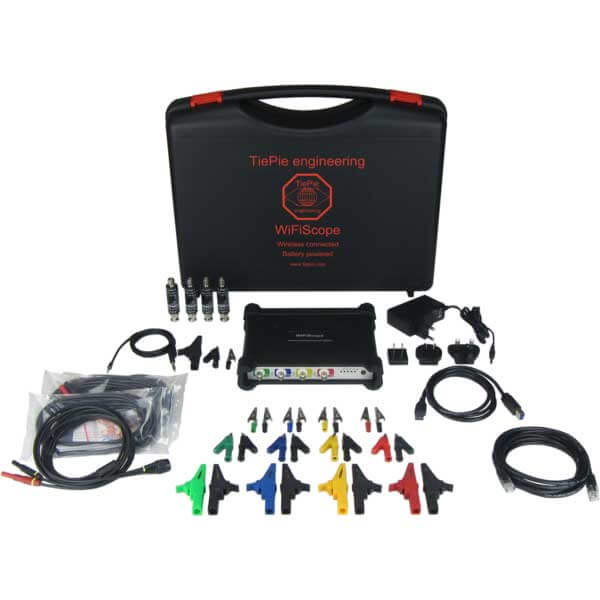

WiFiScope WS6 DIFF Complete Set

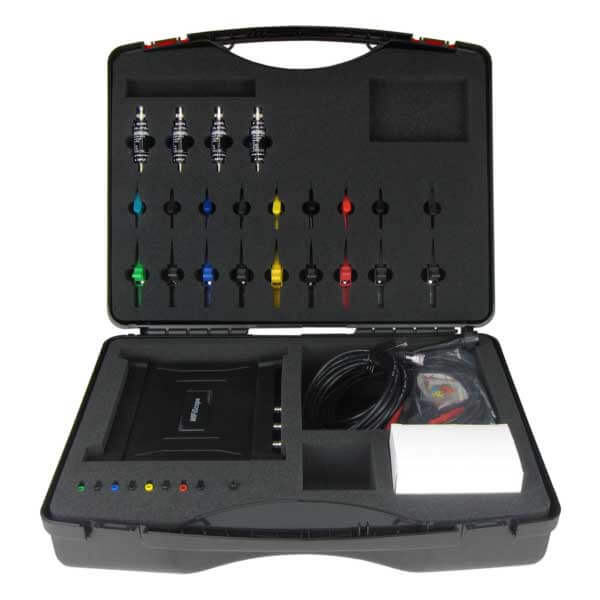

WiFiScope WS6 DIFF In Case

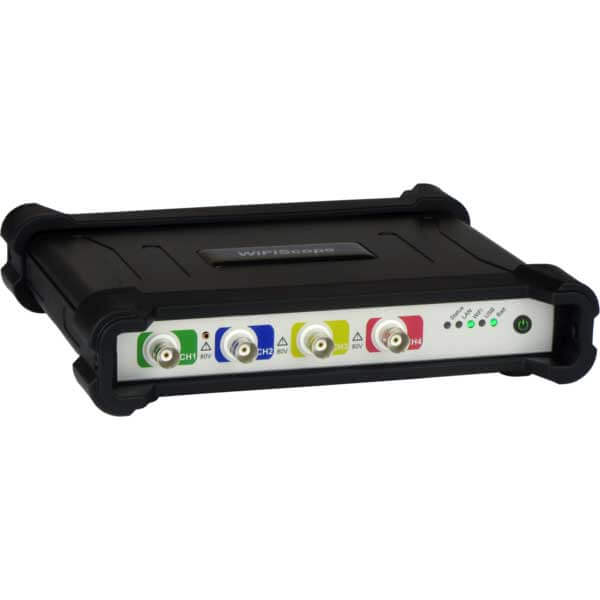

WiFiScope WS6 DIFF

$2,470.55 – $3,839.56 (converted)

Choose the model, options and warranty below:
•⁠ Extended memory (XM)
•⁠ EMI (E)
•⁠ SureConnect (S)
•⁠ SafeGround (G)

SKU: N/A Category: Tags: , , , , , Brand:

Description

The WiFi oscilloscope packed with technology

The 1 GSa/s 14 bit quad differential channel High Resolution WiFi Oscilloscope.

Key specifications

  • Differential inputs
  • 8, 12, 14, 16 bit resolution, 0.25 % DC vertical accuracy, 0.1 % typical
  • Up to 1 GSa/s sampling, up to 250 MHz bandwidth
  • Up to 256 MSamples memory per channel
  • Up to 200 MSs/s continuous streaming
  • 1 ppm time base accuracy

This powerful high speed WiFi oscilloscope combines fast sampling up to 1 GSa/s with high resolutions of 12, 14 and 16 bit and a large memory of 64 MSamples on all four channels. The oscilloscope supports continuous streaming measurements up to 200 MSa/s and can be synchronized with other oscilloscopes using the CMI interface to form a multi channel combined instrument with synchronized time base. The CMI interface is available by default on the WiFiScope WS6 DIFF. Optionally, the WiFiScope WS6 DIFF can be delivered with SureConnect connection test and resistance measurement on each channel. Also, the WiFiScope WS6 DIFF can be delivered with SafeGround option. With SafeGround you can switch the differential inputs of the WiFiScope WS6 DIFF into single-ended inputs with ground protection. It allows to make measurements using standard attenuating probes and protects the scope when a short circuit to ground is created.

The flexibility and quality that the WiFiScope WS6 DIFF offers is unparalleled by any other oscilloscope in its class.

Rugged industrial design

WiFiScope Front sideview

The WiFiScope WS6 DIFF features a rugged design. Its enclosure is fitted with rubber protectors at the front and the rear. These protect the WiFiScope WS6 DIFF against damage by mechanical shocks. The rubber helps absorbing shocks and protects the connectors at the front and the rear of the WiFiScope WS6 DIFF, these fall within the protected zone.

Additionally, the rubber prevents your WiFiScope WS6 DIFF from sliding. The rubber protectors have special notches that simplify stacking instruments. Holes are included that allow to connect a strap to hang the instrument near the test subject.

SafeGround

SafeGround

SafeGround gives the possibility to use the oscilloscope inputs both as single-ended and as differential. When SafeGround is active and you accidentally create a wrong connection that causes a short circuit, SafeGround will disconnect the ground of the input channel without damaging the oscilloscope or PC.

SureConnect

SafeGround

The SureConnect connection test feature of the WiFiScope WS6 DIFF tells you immediately whether your test probe or clip actually makes electrical contact or not. No more doubt whether your probe doesn’t make contact or there really is no signal.

EMI pre compliance testing

EMI setup

The powerful capabilities of the WiFiScope WS6 DIFF – 1000XMESG EMI analyzer give the user the possibility to quickly perform a good EMI compliance test. With this cost effective test, time and money are saved by avoiding extra visits to expensive EMC testing facilities. The supplied EMI probe set TP-EMI-HS6 contains three magnetic field (H field) probes and one electric field (E field) probe. The tripod ensures that the probes can be positioned properly at the object under test.

Multi instrument synchronization

WCMI

The WiFiScope WS6 DIFF is equipped with a sophisticated CMI synchronization bus, allowing to connect multiple WiFiScope WS6 DIFFs to each other by means of TP-C50H CMI Coupling cables, to use them as a combined and synchronized instrument. All instruments will measure at the same sample frequency (0 ppm deviation!). Apart from a synchronization bus, the CMI also contains a trigger bus and a detection bus. The maximum number of instruments is only limited by the number available USB ports.

When the instruments are located further apart, yet have to be combined and synchronized, the Wireless Multi Instrument Synchronization Module WCMI can be used. The WCMI modules are connected to the extension port of the instruments and allow to synchronize instruments that are up to 400 m apart.

High accuracy

Zoomed in to 8 mV range

The WiFiScope WS6 DIFF measures with high resolutions of 14 and 16 bit. A signal measured with the WiFiScope WS6 DIFF therefore has 256 times more resolution than most standalone oscilloscopes, which usually have a low resolution of 8 or 9 bit. The high resolution of the WiFiScope WS6 DIFF precision oscilloscope allows for measuring signals with more accuracy, because the quantization error is much lower.

Large memory

Zoom in 1 million times

When measuring at high sample rates, a long record length/large memory is necessary to be able to record a complete signal in the acquisition buffer. Where most oscilloscopes have 2.5 kSamples or 100 kSamples memory, the WiFiScope WS6 DIFF has up to 256 MSamples memory per channel, depending on the selected resolution and the number of active channels. When measuring at 14 bit resolution and all four channels, the available memory is 32 MSamples per channel. This gives the user 300 to 100000 times more memory. An advantage of a large memory is that once-only fast phenomena can be captured accurately or complete serial communication signal blocks can be measured all at once. For example complete serial communications, like CAN bus signals, can be measured all in one record to be reviewed and analyzed afterwards.

Bandwidth limit

Bandwidth limit

It seems reasonable to assume that more bandwidth is better, but a wider bandwidth gives more noise. To reduce your noise you can switch on a bandwidth limiter for each channel of the WiFiScope WS6 DIFF.



Network Connected

WiFi connected

Using a computer based oscilloscope was never easier than with the <b”>WiFiScope WS6 DIFF: simply switch it on and start the software on the computer:

  • no power cables required as it is battery powered and can operate hours on a fully charged battery
  • no interface cables required as it uses WiFi to connect to the computer

This allows you to measure fully floating, fully isolated from your computer. The WiFiScope WS6 DIFF can be placed near any test subject that may be hard to reach, or on moving objects, where wired connections are not possible.

Because the WiFiScope WS6 DIFF is not connected to the computer, there is no risk of damaging the computer.



LAN connected

LAN

When measuring in remote locations where a wired network is available, the WiFiScope WS6 DIFF can also be used through its LAN port. Measurements can then be performed from any location via the network, without having the computer to be close to the test subject.

Using its 1 Gbit LAN connection, the WiFiScope WS6 DIFF can achieve higher streaming performance than via WiFi.



USB 3.0 connected

USB

When wireless measuring or LAN connected measuring is not required or not possible, the WiFiScope WS6 DIFF can also be connected via its USB3 port. This gives the benefit of even higher streaming performance. Additionally, when connected via USB, the WiFiScope WS6 DIFF can be combined with oscilloscopes via its CMI interface.



Features

Versatile Multi Channel oscilloscope software

The WiFiScope WS6 DIFF is delivered with the versatile Multi Channel oscilloscope software, which transforms the WiFiScope WS6 DIFF into an oscilloscope, spectrum analyzer, data logger, multimeter and protocol analyzer.

Some of the powerful features of the Multi Channel oscilloscope software are indicated below, for a full description of the Multi Channel oscilloscope software, refer to the Multi Channel oscilloscope software pages.

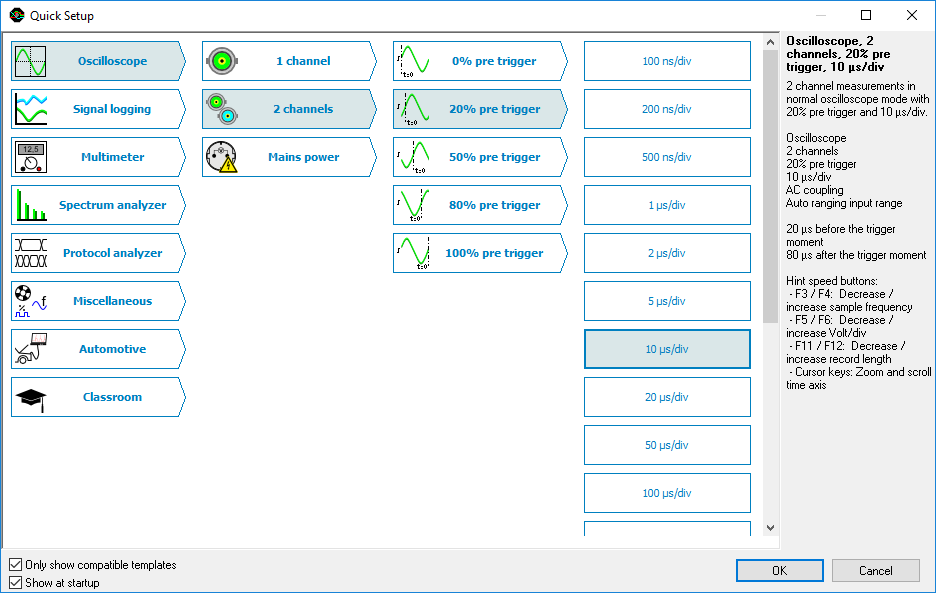

Quick Setup

To simplify setting up the measurements, the Multi Channel oscilloscope software contains a large number of Quick Setups, for almost any application. A Quick Setup contains the basic settings for a specific measurement as well as additional information regarding the selected Quick Setup, like e.g. how your Handyscope and/or accessories need to be connected. Quick Setups can also contain reference signals. After loading the Quick Setup, that specific measurement can be performed and if needed, small adjustments to the setup can be made.

The Quick Setups are carefully organized in a tree structure, ordered by application. Just a few mouse clicks allow to perform a complex measurement.

Flexible signal displays

The Multi Channel oscilloscope software scope, spectrum analyzer and datalogger offer an ultimately flexible way to display all aspects of the measured signals. They can have one or more graphs, each displaying one or more signals, where each graph can display different parts of a signal. Graphs can display the signal(s) of your Handyscope in Yt mode, in XY mode or as frequency spectrum, with or without interpolation. Colors of all items in a graph can be set to any required value. Graph dimensions can be adjusted to any required size, graphs can be located in one single window or in separate windows, which can be located anywhere on the desktop.



Many automatic measurements

The Multi Channel oscilloscope software features many automatic measurements, that can be performed on the measured signals of your Handyscope or on a selection of the measured signals. Using the automatic measurements in the oscilloscope, any detail of your signal is revealed. Two sets of cursors, both horizontal and vertical, can be used to indicate a part of the signal that needs to be examined thoroughly. The automatic measurements include e.g.: Mininum, Maximum, Top-Bottom, RMS, Mean, Variance, Standard deviation, Frequency.

The measurement results are shown in a special value window that can be positioned anywhere on your computer screen. A convenient toolbar allows you to enable or disable a measurement with a single click. The measurement results can be copied to the clipboard e.g. to use them in reports. When printing the graphs, the cursors and measurements results are also included.



High detail spectrum analyzer

The high detail Multi Channel oscilloscope software spectrum analyzer takes full benefit of the deep memory of the high resolution USB Handyscopes. Not only gives the deep memory an incredible low resolution bandwidth of just 7.45 Hz at a frequency span of 500 MHz, it also gives a vertical dynamic range of 140 dB. The fast and powerful FFT routines with many user selectable window functions allow you to see the smallest frequency components in your signals.

The multi display option of the Multi Channel oscilloscope software spectrum analyzer allows viewing multiple parts of the spectrum at the same time, giving a better understanding of the signals that are analyzed.

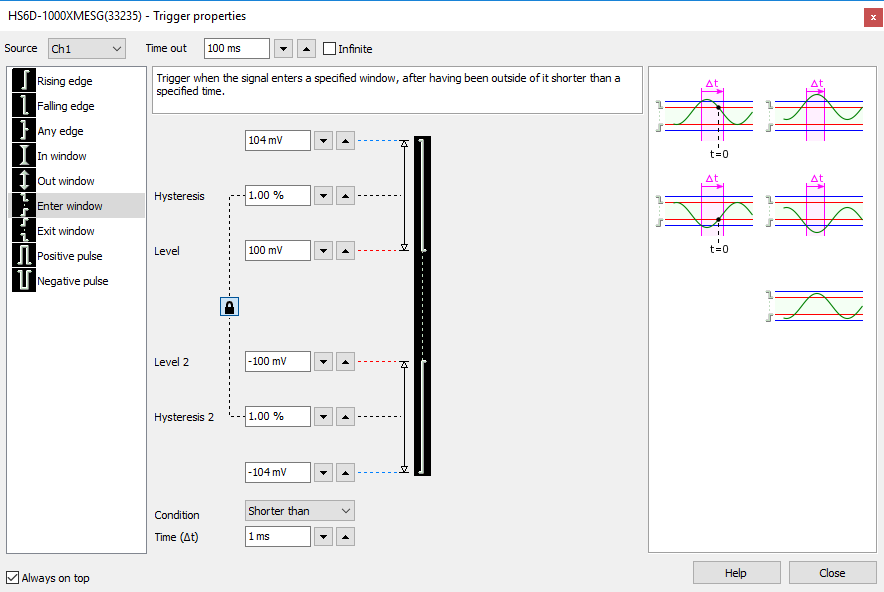

Advanced triggers

To control the advanced trigger capabilities of your Handyscope, the Multi Channel oscilloscope software provides for a convenient trigger properties dialog. It allows to view and set all properties of the trigger, like e.g. trigger source, trigger type, all levels and hystereses and optional time conditions. Additionally, it gives an explanation on the selected trigger type and examples that do cause a trigger (left column) and do not cause a trigger (right column).



Unlimited zoom

Oscilloscope

When measuring at high sample rates, a long record length is a must, otherwise the acquisition buffer is full before the signal is measured. Therefore, our Handyscopes can have up to 256 MSamples record length per channel.

To view all that data conveniently and yet being able to see all details of the signals, the Multi Channel oscilloscope software scope, spectrum analyzer and data logger support sophisticated signal drawing routines with unlimited zooming capabilities. The full signal can be shown on any display size, without loss of information. Yet, you can zoom in to any required level, to see the finest details in the signals. Zooming factors of 1 million of even more are no problem, you can zoom in far beyond sample level.



Analyze fast serial communication protocols

To analyze or debug your serial communications, simply measure the signal(s) transferring the protocol with your Handyscope and have them analyzed and decoded by one of the Multi Channel oscilloscope software protocol analyzers. The decoded information from the serial communications can be shown in tables, in graphs and in the multimeter.

A protocol analyzer is a useful tool when developing a hardware and/or software implementation of a communication bus. It can also be used when debugging device or bus failures.



24/7 Data logging

Measuring long term signal changes with your Handyscope is done with the Multi Channel oscilloscope software Data logger. The data logger logs your signal, continuously uninterrupted at high speed, 24 hour a day, 7 days a week. Results are immediately shown on the screen and all data can be stored to disk. A convenient toolbar lets you navigate through the stored files to find the important moments in the measurement.



Specifications

Acquisition system
Number of input channels 4 analog
CH1, CH2, CH3, CH4 Isolated female BNC
Type Differential input
Resolution User selectable in software
Native 8, 12, 14 bit
Enhanced 16 bit
DC Accuracy 0.25 % (0.1 % typical) of full scale ± 1 LSB at 20°C to 25°C
To achieve rated accuracy, allow the instrument to settle for 20 minutes. When subjected to extreme temperatures, allow additional time for internal temperatures to stabilize.
Ranges (full scale) ±200 mV
±400 mV
±800 mV		 ±2 V
±4 V
±8 V		 ±20 V
±40 V
±80 V
Coupling AC/DC
Impedance 2 MOhm / 12 pF ± 1 %
1 MOhm / 20 pF ± 1 % when SafeGround enabled
Noise 305 µVrms (200 mV range, 12 bit, 50 MSa/s)
90 µVrms (200 mV range, 16 bit, 6.25 MSa/s)
Maximum voltage 200 V (DC + AC peak < 10 kHz)
Maximum Common Mode voltage 200 mV to 800 mV ranges : 2 V
2 V to 8 V ranges : 20 V
20 V to 80 V ranges : 200 V
Common Mode Rejection Ratio -47 dB
Bandwidth WS6 DIFF-1000 WS6 DIFF-500 WS6 DIFF-200
-3dB at 75 % of full scale input 250 MHz 250 MHz 250 MHz
Limit, selectable per channel Off (250 MHz)
150 MHz
100 MHz
50 MHz		 Off (250 MHz)
150 MHz
100 MHz
50 MHz		 Off (250 MHz)
150 MHz
100 MHz
50 MHz
AC coupling cut off frequency (-3dB) ±1.5 Hz
Channel Isolation 500 V
Channel Separation -80 dB
SureConnect Optionally available (option S)
Maximum voltage on connection 200 V (DC + AC peak < 10 kHz)
Resistance measurement Optionally available (option S)
Ranges (Full scale) 1 kΩ
2 kΩ
5 kΩ		 10 kΩ
20 kΩ
50 kΩ		 100 kΩ
200 kΩ
500 kΩ		 1 MΩ
2 MΩ
Accuracy 1 % of full scale
Response time (to 95%) < 10 µs
SafeGround Optionally available (option G)
Maximum voltage on connection 200 V (DC + AC peak < 10 kHz)
Maximum switch off current 500 mA
Response time < 100 ns

Maximum sampling rate WS6 DIFF-1000 WS6 DIFF-500 WS6 DIFF-200
8 bit
measuring one channel 1 GSa/s 500 MSa/s 200 MSa/s
measuring two channels 500 MSa/s 200 MSa/s 100 MSa/s
measuring three or four channels 200 MSa/s 100 MSa/s 50 MSa/s
12 bit
measuring one channel 500 MSa/s 200 MSa/s 100 MSa/s
measuring two channels 200 MSa/s 100 MSa/s 50 MSa/s
measuring three or four channels 100 MSa/s 50 MSa/s 20 MSa/s
14 bit 100 MSa/s 50 MSa/s 20 MSa/s
16 bit 6.25 MSa/s 3.125 MSa/s 1.25 MSa/s

Maximum streaming rate 1 WS6 DIFF-1000 WS6 DIFF-500 WS6 DIFF-200
8 bit
measuring one channel 200 MSa/s 2 100 MSa/s 2 40 MSa/s
measuring two channels 100 MSa/s 3 50 MSa/s 3 20 MSa/s
measuring three or four channels 50 MSa/s 4 25 MSa/s 4 10 MSa/s
12 bit
measuring one channel 100 MSa/s 3 50 MSa/s 3 20 MSa/s
measuring two channels 50 MSa/s 4 25 MSa/s 4 10 MSa/s
measuring three or four channels 25 MSa/s 5 12.5 MSa/s 5 5 MSa/s
14 bit
measuring one channel 100 MSa/s 3 50 MSa/s 3 20 MSa/s
measuring two channels 50 MSa/s 4 25 MSa/s 4 10 MSa/s
measuring three or four channels 25 MSa/s 5 12.5 MSa/s 5 5 MSa/s
16 bit 6.25 MSa/s 6 3.125 MSa/s 1.25 MSa/s
  1. Due to computer restrictions, on some computers the highest streaming rates may not be available.
    When LAN/WiFi connected, the maximum streaming rate is limited, and depends on the quality of the network.
  2. ≤ 40 MSs/s when connected to USB 2.0 or via LAN/WiFi
  3. ≤ 20 MSs/s when connected to USB 2.0 or via LAN/WiFi
  4. ≤ 10 MSs/s when connected to USB 2.0 or via LAN/WiFi
  5. ≤ 5 MSs/s when connected to USB 2.0 or via LAN/WiFi
  6. ≤ 3.125 MSs/s when connected to USB 2.0 or via LAN/WiFi
Sampling clock source
Internal TCXO
Accuracy ± 0.0001 %
Stability ± 1 ppm over 0°C to 55°C
Time base aging ±1 ppm/year
External LVDS, on CMI connectors
Input frequency 10 MHz ± 1 %
16.369 MHz ± 1 %

Memory Standard model XM option via USB XM option via WiFi/LAN
8 bit resolution
Measuring one channel 1 MSa per channel 256 MSa per channel 64 MSa per channel
Measuring two channels 512 KSa per channel 128 MSa per channel 32 MSa per channel
Measuring three or four channels 256 KSa per channel 64 MSa per channel 16 MSa per channel
12, 14, 16 bit resolution
Measuring one channel 512 KSa per channel 128 MSa per channel 32 MSa per channel
Measuring two channels 256 KSa per channel 64 MSa per channel 16 MSa per channel
Measuring three or four channels 128 KSa per channel 32 MSa per channel 8 MSa per channel

Trigger Only available in scope/block mode, not in streaming mode
System Digital, 2 levels
Source CH1, CH2, CH3, CH4, OR, digital external
Trigger modes Rising edge, Falling edge, Any edge
Inside window, Outside window, Enter window, Exit window (time conditions only on Ch1)
Pulse width (only on Ch1)
Interval (only on Ch1)
Level adjustment 0 to 100 % of full scale
Hysteresis adjustment 0 to 100 % of full scale
Resolution 0.006 % (14, 16 bits) / 0.025% (12 bits)
Pre trigger 0 to selected record length, 1 sample resolution
Post trigger 0 to selected record length, 1 sample resolution
Trigger hold-off 0 to 63 MSamples, 1 sample resolution
Trigger delay 0 to 8 GSamples, 1 sample resolution
Digital external trigger
Input Extension connector pins 1 and 2
Range 0 to 2.5 V (TTL)
Coupling DC
Jitter ≤ 1 sample

Multi-instrument synchronization
Using CMI Synchronizing instruments via CMI is available when all instruments are connected via USB.
Maximum number of instruments Limited by number of available USB ports
Synchronization accuracy 0 ppm
CMI interface 2x, CMI 1, CMI 2
Required coupling cable TP-C50H CMI Coupling cable
Maximum coupling cable length 50 cm
Using WCMI Synchronizing instruments via WCMI is available when instruments are connected via USB, LAN and WiFi.
Maximum number of instruments No limitation
Required coupling module WCMI – 8, WCMI – 9
Clock synchronization accuracy ≤ 1 ppm, typical ≤ 0.2 ppm
Trigger jitter at sample rate 1 ≤ 1 MSa/s > 1 MSa/s
2 x “5” ≤ ±2 samples ≤ ±2 µs
“5” and “6”
Trigger source “5” ≤ ±2 samples ≤ ±2 µs
Trigger source “6” ≤ ±8 samples ≤ ±8 µs
2 x “6” ≤ ±8 samples ≤ ±8 µs
  1. “5” = WiFiScope WS5 or Handyscope HS5.
    “6” = WiFiScope WS6 DIFF, WiFiScope WS6, Handyscope HS6 DIFF, Handyscope HS6, ATS610004DW-XMSG, ATS610004D-XMSG, ATS605004DW-XMS or ATS605004D-XMS

Probe calibration
Output Extension connector pins 3 (signal) and 6 (ground)
Signal Square wave
Level -1 V to 1 V
Frequency 1 kHz

Interface
Interface
USB USB 3.0 SuperSpeed (5 Gbit/s);
(USB 2.0 HighSpeed compatible)
Network
LAN 1 Gbps
WiFi 802.11
Network port (TCPIP and UDP) 5450 (IANA assigned)

Power Requirements
Power From USB, external input or built-in battery
Consumption 12 VDC 2 A max
External power From power adapter
Internal battery Li-ion
Capacity 7000 mAh, 3.7 V
Weight 160 g

Physical
Instrument
Height 44 mm (1.7 inch)
Length 187 mm (6.7 inch)
Width 215 mm (5.2 inch)
Weight 791 g (27.9 ounce)
USB cord length 1.5 m (59 inch)

I/O connectors
Channel 1, 2, 3, 4 Isolated BNC, female
LAN RJ45 socket
USB USB 3.0 type B Super Speed socket
Extension connector D-sub 9 pins female
Power 3.5 mm power socket
CMI connectors 2 x HDMI type C socket

System requirements
PC I/O connection USB 2.0, USB 3.0 or USB 3.1
RJ45
WiFi
Operating system Windows 10 / 11, 64 bits
Linux (via own software using the libtiepie-hw SDK)

Environmental conditions
  Ambient temperature Relative humidity
Operating (with charging) 20°C to 25°C for rated accuracy
(10°C to 30°C without specifications)		 10 % to 90 %, non condensing
Operating (without charging) 20°C to 30°C for rated accuracy
(10°C to 35°C without specifications)		 10 % to 90 %, non condensing
Only charging 0°C to 35°C 10 % to 90 %, non condensing
Storage 0°C to 35°C 5 % to 95 %, non condensing

Certifications and Compliances
CE mark compliance Yes
RoHS Yes
EN 55011:2009/A1:2010 Yes
EN 55022:2006/A1:2007 Yes
EN 61000-6-1:2007 Yes
EN 61000-6-3:2007 Yes

Package contents
Carry case Carry case BB453
Instrument WiFiScope WS6 DIFF
Measure leads 4 x Measure lead TP-C812B, Differential BNC -> 4 mm banana plug
Differential attenuator 4 x Differential attenuator TP-DA10
Alligator clips, large Alligator Clip TP-AC80I – Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 large alligator clips
Alligator clips, medium Alligator Clip TP-AC10I – Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 medium alligator clips
Alligator clips, small Alligator Clip TP-AC5 – Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 small alligator clips
Accessories Ground compensation Cable TP-GCC150
Handyscope / WiFiScope power supply
USB3 cable, 1.5 m long
network cable, 3 m long
Probe compensation cable TP-DB9-BNC-30 (only with option SafeGround)
Software for Windows 10 / 11, 64 bits, via website
Drivers for Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manuals instrument manual and software user’s manuals
color printed and digital, via website

Optional Accessories
Optional accessories for the WiFiScope WS6 DIFF need to be ordered separately
Oscilloscope probe Oscilloscope Probe 1:1-1:10 – HP-3250I, only with SafeGround option G
Measure lead single-ended Measure lead TP-BNCI-100, only with SafeGround option G

Customer service
TiePie engineering instruments are designed, manufactured and tested to provide high reliability. In the unlikely event you experience difficulties, the TiePie engineering instruments are fully warranted for two years.
This warranty includes All parts and labor (excluding probes and/or measure leads and/or batteries)
Warranty on batteries is 6 months.
No charge for return shipping
Long-term 7 year support
Upgrade to the latest software at no charge
Optionally available Extension to five year warranty, option W5



Models

The WiFiScope WS6 DIFF is available in 3 different base models:

Order code Max. sampling speed Max. streaming speed
WS6-DIFF-1000 1 GSa/s 200 MSa/s
WS6-DIFF-500 500 MSa/s 100 MSa/s
WS6-DIFF-200 200 MSa/s 50 MSa/s

Available options for the WiFiScope WS6 DIFF are:

  • XM: With the extended memory option, up to 256 MSamples memory per channel is available. Without this option, the models have up to 1 MSamples memory per channel.
  • E: With the EMI option, the WiFiScope WS6 DIFF is turned into a high accuracy EMI pre compliance tester. The EMI option includes the EMI probe set TP-EMI-HS6.
  • S: With the SureConnect option, connection test and resistance measurement are available on all channels.
  • G: With the SafeGround option, the differential inputs can be switched to single-ended inputs, with a protection against shorts circuits to ground.
  • W5: With the extended warranty option, warranty is five years on parts and labor (probes and/or measure leads and/or batteries excluded).
    Without this option, the models have two years warranty on parts and labor (probes and/or measure leads and/or batteries excluded).
    Warranty on batteries is 6 months.

The EMI option requires a WiFiScope WS6 DIFF – 1000 in combination with at least options XM and G.

The Standalone option requires a WiFiScope WS6 DIFF – 1000 in combination with at least options XM.

Package Contents

The WiFiScope WS6 DIFF is delivered with:

Carry case Carry case BB453
Instrument WiFiScope WS6 DIFF
Measure leads 4 x Measure lead TP-C812B, Differential BNC -> 4 mm banana plug
Differential attenuator 4 x Differential attenuator TP-DA10
Alligator clips, large Alligator Clip TP-AC80I – Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 large alligator clips
Alligator clips, medium Alligator Clip TP-AC10I – Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 medium alligator clips
Alligator clips, small Alligator Clip TP-AC5 – Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 small alligator clips
Accessories Ground compensation Cable TP-GCC150
Handyscope / WiFiScope power supply
USB3 cable, 1.5 m long network cable, 3 m long
Probe compensation cable TP-DB9-BNC-30 (only with option SafeGround)
Software for Windows 10 / 11, 64 bits, via website
Drivers for Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manuals instrument manual and software user’s manuals
color printed and digital, via website



Downloads

Several downloads for the WiFiScope WS6 DIFF are listed below, including Multi Channel oscilloscope software, drivers and manuals.

Driver & Software

Description Version Remarks Size
WinUSB driver 10.0.2 Windows 10 / 11, 64 bit 1.73 MB download
Multi Channel software 1.48.0 Windows 10 / 11, 64 bit, including PDF manual 104.80 MB download

Firmware

Description Version Remarks Size
WiFiScope network module firmware 2025-02-11   304.09 MB download

Manuals & Documents

Description Version Remarks Size
Multi Channel software manual 1.11 English 3.13 MB download
WiFiScope Quick Start Guide   English 2.55 MB download
WiFiScope WS6 DIFF Instrument manual 2.52 English 1.52 MB download
WiFiScope WS6 DIFF data sheet   English 3.28 MB download

Software Development Kit (SDK)

Interfacing the WiFiScope WS6 DIFF with third party software and developing own software
requires the libtiepie-hw Software Development Kit.
Detailed information on the libtiepie-hw SDK, downloads for Windows and Linux platforms and bindings and programming
examples for various programming environments can be found in the libtiepie-hw pages.

Related Products
