Differential attenuator TP-DA10

Differential attenuator TP-DA10

$38.95

SKU: TP-DA10 Category:

Description

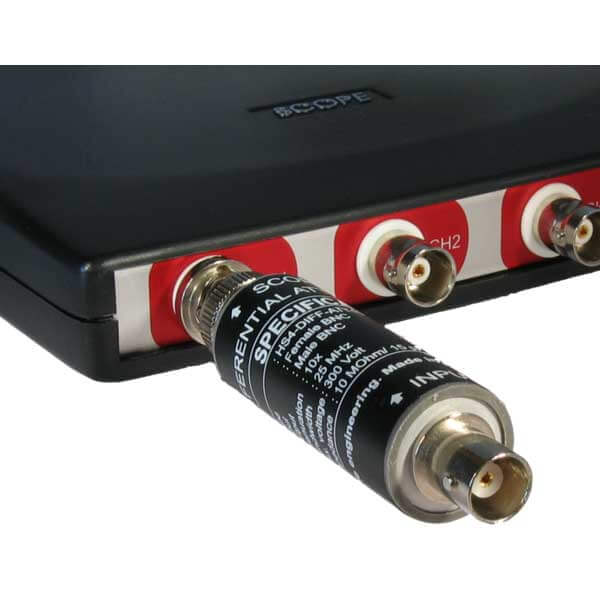

The Differential attenuator TP-DA10 is a differential 1:10 attenuator, specially designed to be used with the:

Due to the differential inputs of these instruments, a standard attenuator or attenuating oscilloscope probe cannot be used without introducing measuring errors. Instead a differential attenuator is required.

The Differential attenuator TP-DA10 can simply be placed directly on the input of the instrument and the measuring lead on the other end of the attenuator.

The Differential attenuator TP-DA10 models are each adjusted for a specific instrument.

Specifications

The table below shows detailed specifications of the Differential attenuator TP-DA10.

Differential attenuator TP-DA10
Attenuation 10 x, differential
Bandwidth 25 MHz
Maximum input voltage 300 V
Impedance 10 MΩ // 15 pF
Input connector female BNC
Output connector male BNC
Dimensions
Length 79 mm
Diameter 19 mm
Weight 30 g
Suitable instrument depending on model
model TP-DA10-ATS5004D Automotive Test Scope ATS5004DW and Automotive Test Scope ATS5004D
model TP-DA10-ATS610004D Automotive Test Scope ATS610004DW-XMSG, Automotive Test Scope ATS605004DW-XMS,
Automotive Test Scope ATS610004D-XMSG and Automotive Test Scope ATS605004D-XMS

Models

The Differential attenuator TP-DA10 is available in the following models, each adjusted for specific instrument:

Differential attenuator TP-DA10 – ATS5004D for the Automotive Test Scope ATS5004DW and Automotive Test Scope ATS5004D.
Differential attenuator TP-DA10 – ATS610004D for the Automotive Test Scope ATS610004DW-XMSG, Automotive Test Scope ATS605004DW-XMS, Automotive Test Scope ATS610004D-XMSG and Automotive Test Scope ATS605004D-XMS.

Order code Price
TP-DA10-ATS610004D € 27.20
TP-DA10-ATS5004D € 27.20
