$1,591.73 – $2,411.60 (converted)

Choose the model below:

SKU: N/A Category: Brand:

Description

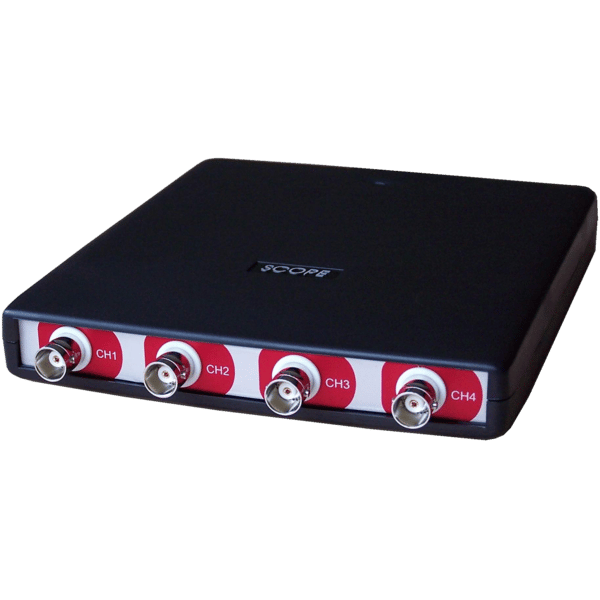

The Handyscope HS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MSa/s and 128 Kpts memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The Handyscope HS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications.

Differential inputs

The Handyscope HS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters etc. No more risk of creating short circuits through your oscilloscope!

Fast continuous streaming

Besides measuring in block mode as oscilloscope, the Handyscope HS4 DIFF is also capable of performing continuous streaming measurements as data logger. This will create a continuous uninterrupted data stream to the computer. The data can then be displayed on the screen and/or saved to disk.

Combining multiple Handyscope HS4 DIFFs

When one Handyscope HS4 DIFF does not offer enough input channels, the Handyscope HS4 DIFF can be coupled to one or more other instruments. This allows to make a combined instrument which will enable simultaneous measuring on all channels of all combined instruments.

Features

Versatile Multi Channel oscilloscope software

The Handyscope HS4 DIFF is delivered with the versatile Multi Channel oscilloscope software, which transforms the Handyscope HS4 DIFF into an oscilloscope, spectrum analyzer, data logger, multimeter and protocol analyzer.

Some of the powerful features of the Multi Channel oscilloscope software are indicated below, for a full description of the Multi Channel oscilloscope software, refer to the Multi Channel oscilloscope software pages.

Flexible Signal Displays

The Multi Channel oscilloscope software scope, spectrum analyzer and datalogger offer an ultimately flexible way to display all aspects of the measured signals. They can have one or more graphs, each displaying one or more signals, where each graph can display different parts of a signal. Graphs can display the signal(s) of your Handyscope in Yt mode, in XY mode or as frequency spectrum, with or without interpolation. Colors of all items in a graph can be set to any required value. Graph dimensions can be adjusted to any required size, graphs can be located in one single window or in separate windows, which can be located anywhere on the desktop.

Touchscreen-Friendly Toolbars

An oscilloscope toolbar and channel toolbars are available for each detected Handyscope. The convenient toolbars provide clear buttons for all settings of the oscilloscope and its channels. They show the current settings of the oscilloscope and allow to change all settings. The large buttons are very suitable for touchscreen operation.

The toolbars are fully configurable through the program settings. You can set the button size, add or remove buttons and change the order of the buttons.

Many Automatic Measurements

The Multi Channel oscilloscope software features many automatic measurements, that can be performed on the measured signals of your Handyscope or on a selection of the measured signals. Using the automatic measurements in the oscilloscope, any detail of your signal is revealed. Two sets of cursors, both horizontal and vertical, can be used to indicate a part of the signal that needs to be examined thoroughly. The automatic measurements include e.g.: Mininum, Maximum, Top-Bottom, RMS, Mean, Variance, Standard deviation, Frequency.

The measurement results are shown in a special value window that can be positioned anywhere on your computer screen. A convenient toolbar allows you to enable or disable a measurement with a single click. The measurement results can be copied to the clipboard e.g. to use them in reports. When printing the graphs, the cursors and measurements results are also included.

Multimeter

The multimeter in the Multi Channel oscilloscope software turns your Handyscope into a multimeter can be used to measure or monitor specific properties of a signal, like True RMS value, frequency, maximum value etc. The Multi Channel oscilloscope software multimeter can have any number of fully configurable displays, either displaying the measured value as a number or using a gauge display. When using a gauge display, it can be very helpful when adjusting a circuit for a specific property, e.g. adjusting an offset to zero.

Specifications

Acquisition system
Number of input channels 4 analog
Ch1, Ch2, Ch3, Ch4 Isolated BNC, female
Type Differential
Resolution User selectable in software
Native 12 bit
Enhanced 14, 16 bit
Accuracy 0.3 % of full scale ± 1 LSB
Noise 135 µVrms (200 mV range, 12 bit, 50 MSa/s)
50 µVrms (200 mV range, 16 bit, 195 kSa/s)
Ranges (Full scale) ±200 mV
±400 mV
±800 mV		 ±2 V
±4 V
±8 V		 ±20 V
±40 V
±80 V
Coupling AC/DC
Impedance 2 MΩ / 40 pF
Maximum input voltage (in all ranges) ±200 V (DC + AC peak < 10 kHz)
with 1:10 attenuator ±300 V (DC + AC peak < 10 kHz)
Maximum Common Mode voltage 200 mV to 800 mV ranges : 2 V
2 V to 8 V ranges : 20 V
20 V to 80 V ranges : 200 V
Common Mode Rejection Ratio -48 dB
Bandwidth (-3dB) DC to 50 MHz maximum
AC coupling cut off frequency (-3dB) 1 Hz
Channel Isolation 500 V
Channel Separation -80 dB
Maximum sampling rate HS4 DIFF-50 HS4 DIFF-25 HS4 DIFF-10 HS4 DIFF-5
12 bit 50 MSa/s 25 MSa/s 10 MSa/s 5 MSa/s
14 bit 3.125 MSa/s 3.125 MSa/s 3.125 MSa/s 3.125 MSa/s
16 bit 195.3 kSa/s 195.3 kSa/s 195.3 kSa/s 195.3 kSa/s
Maximum streaming rate HS4 DIFF-50 HS4 DIFF-25 HS4 DIFF-10 HS4 DIFF-5
12 bit 500 kSa/s 250 kSa/s 100 kSa/s 50 kSa/s
14 bit 480.8 kSa/s 250 kSa/s 99.2 kSa/s 50 kSa/s
16 bit 195.3 kSa/s 195.3 kSa/s 97.7 kSa/s 48.8 kSa/s
Sampling clock source
Internal Quartz
Accuracy ±0.01 %
Stability ±100 ppm over -40 °C to +85 °C
Time base aging ±5 ppm/year
External On extension connector
Voltage 3.3 V TTL, 5 V TTL tolerant
Frequency range 95 MHz to 105 MHz
Memory 128 Kpts per channel
Trigger Only available in scope/block mode, not in streaming mode
System Digital, 2 levels
Source CH1, CH2, CH3, CH4, OR, digital external
Trigger modes Rising edge, Falling edge
Inside window, Outside window
Level adjustment 0 to 100 % of full scale
Hysteresis adjustment 0 to 100 % of full scale
Resolution 0.025 % (12 bits)
Pre trigger 0 to 131071 samples, 1 sample resolution
Post trigger 0 to 131071 samples, 1 sample resolution
Trigger hold-off 0 to 1048576 Samples, 1 sample resolution
Digital external trigger
Input Extension connector
Range 0 to 3.3 V (5 V max)
Coupling DC

Interface
Interface USB 2.0 High Speed (480 Mbit/s); (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)

Power Requirements
Power from USB port 500 mA max (2.5 W max)
Power via external power input / extension connector 1500 mA max (7.5 W max)
Minimum voltage 4.5 VDC
Maximum voltage 14 VDC

Physical
Instrument height 25 mm (1 inch)
Instrument length 170 mm (6.7 inch)
Instrument width 140 mm (5.2 inch)
Cord length 1.8 m (70 inch)
Weight 460 g (16 ounce)

I/O connectors
Channel 1…4 Isolated BNC, female
USB fixed cable with USB 2.0 and USB 1.1 type A connector
Extension connector D-sub 25 pins female

System Requirements
PC I/O connection USB 2.0 High Speed (480 Mbit/s); (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)
Operating System Windows 10 / 11, 64 bits, and Linux (via libtiepie-hw SDK)

Operating Environment
Ambient temperature 0 to 55 °C
Relative humidity 10 to 90% non condensing

Storage Environment
Ambient temperature -20 to 70 °C
Relative humidity 5 to 95% non condensing

Certifications and Compliances
CE mark compliance Yes
RoHS Yes

Package
Convenient carrying case
Instrument Handyscope HS4 DIFF
Measure leads 4 x Measure lead TP-C812B, BNC -> 4 mm banana plug
Accessories 4 x Differential attenuator TP-DA10
external power cable for second USB port
Software Windows 10 / 11, 64 bits, via website
Drivers Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manual instrument manual and software user’s manuals
color printed on paper and digital, via website
Total package weight Approx. 3 kg

Models

The Handyscope HS4 DIFF is available in 4 different models that distinguish in maximum sampling rate and maximum streaming rate:

Order code Max. sampling speed Max. streaming speed
HS4-DIFF-50 50 MSa/s 500 KSa/s
HS4-DIFF-25 25 MSa/s 250 KSa/s
HS4-DIFF-10 10 MSa/s 100 KSa/s
HS4-DIFF-5 5 MSa/s 50 KSa/s

Available options for the Handyscope HS4 DIFF are:

  • W5: With the extended warranty option, warranty is five years on parts and labor. Without this option, the models have two years warranty on parts and labor.

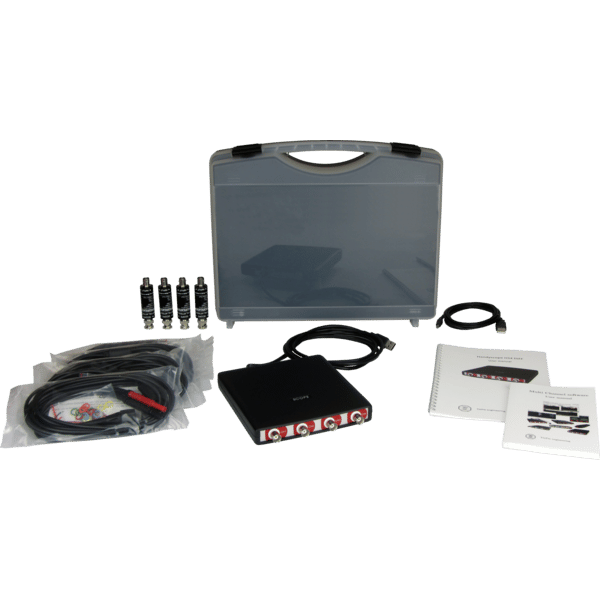

Package contents

The Handyscope HS4 DIFF is delivered with:

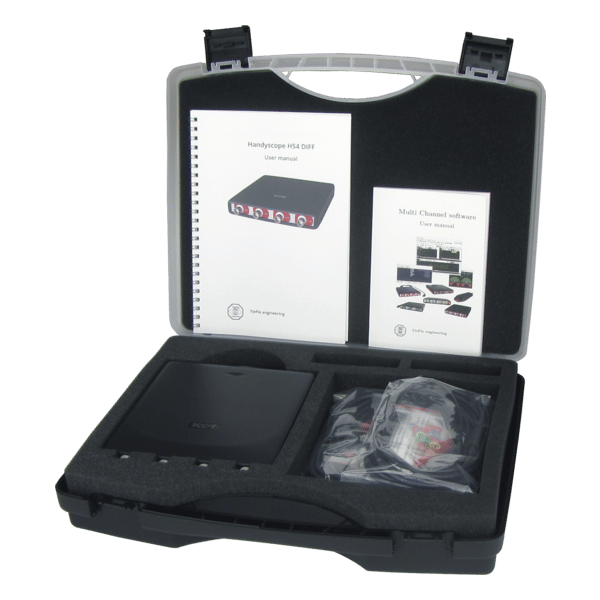

Cary case Carry case BT341
Instrument Handyscope HS4 DIFF

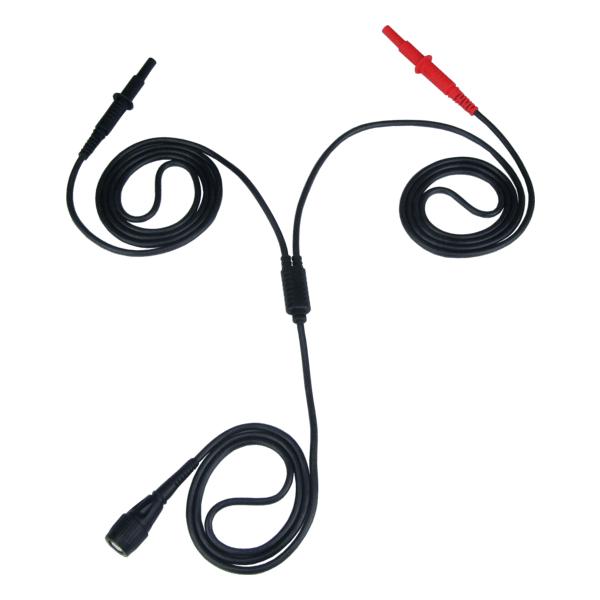

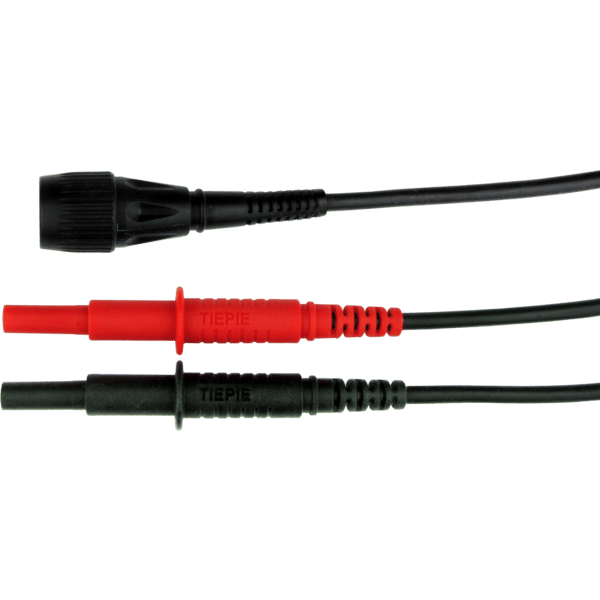

Measure leads 4 x Measure lead TP-C812B, Differential BNC -> 4 mm banana plug

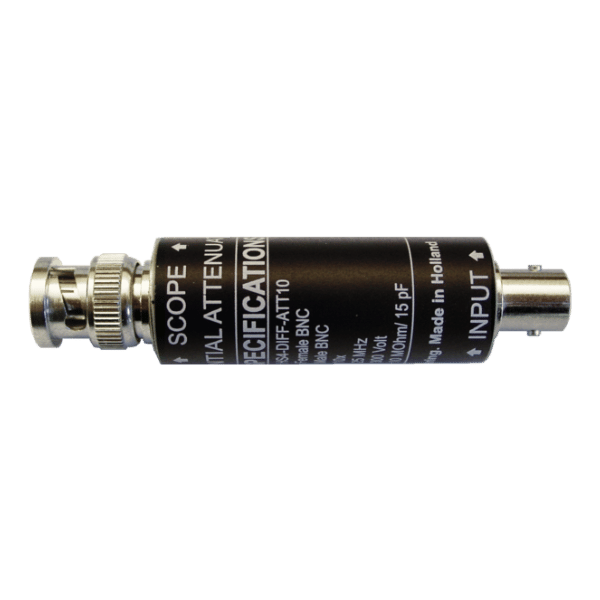

Differential attenuator 4 x Differential attenuator TP-DA10
Accessories external power cable for USB port
Software for Windows 10 / 11, 64 bits, via website
Drivers for Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manuals instrument manual and software user’s manuals
color printed and digital via website

Downloads

Several downloads for the Handyscope HS4 DIFF are listed below, including Multi Channel oscilloscope software, drivers and manuals.

Driver & Software

Description Version Remarks Size
WinUSB driver 10.0.2 Windows 10 / 11, 64 bit 1.73 MB  download
Multi Channel software 1.48.0 Windows 10 / 11, 64 bit, including PDF manual 104.80 MB  download

Manuals & Documents

Description Version Remarks Size
Multi Channel software manual 1.11 English 3.13 MB  download
Handyscope HS4 DIFF Instrument manual 2.51 English 727.83 kB  download
Handyscope HS4 DIFF Datasheet English 4.09 MB  download

Software Development Kit (SDK)

Interfacing the Handyscope HS4 DIFF with third party software and developing own software requires the libtiepie-hw Software Development Kit. Detailed information on the libtiepie-hw SDK, downloads for Windows and Linux platforms and bindings and programming examples for various programming environments can be found in the libtiepie-hw pages.
