Pico Technology PicoScope 4425A 4-Channel Standard Kit (PQ178)

Pico PQ178 4425A Standard Kit

$3,370.00

In stock

SKU: PQ178 Category: Tags: , , , , Brand:

Description

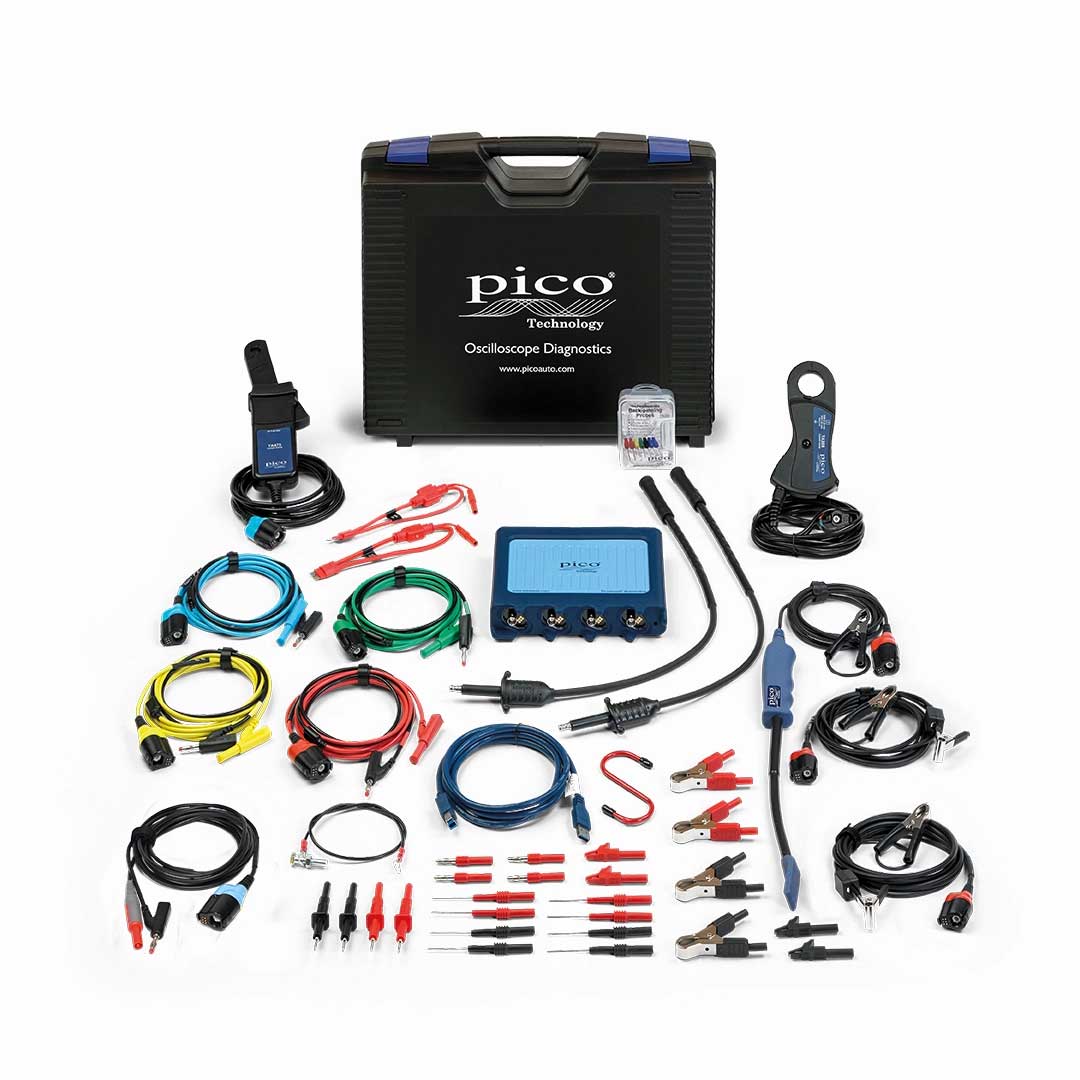

The PQ178 – 4425A Standard Kit is a complete 4-channel automotive oscilloscope diagnostic package. It includes the 4425A PicoScope module and a wide range of essential accessories, all designed for professional-level automotive diagnostics. These components typically include, but are not limited to:

• PicoBNC+™ test probes: Intelligent, color-coded probes for easy setup and accurate signal detection.
• Current clamps: Includes both high-current (2000A AC/DC) and low-current (60A AC/DC) clamps for measuring current in various circuits.
• Ignition testing accessories: Secondary ignition pickups, Coil-on-Plug (COP) probe, and HT extension leads for ignition system diagnostics.
• Flexible back-pinning probes and breakout leads: Provide reliable access to connectors and hard-to-reach terminals.
• Fuse extension leads: For safe access to ATC/ATO and Mini automotive fuses during testing.
• General testing accessories: Includes multimeter-style test probes, crocodile clips, earth wires, and a 10:1 attenuating test lead.
• Protective carrying cases: Supplied with two rugged QuadroPack telescopic cases and a standard carry case for safe transport and organization.

This kit delivers a versatile and high-performance diagnostic solution, ideal for modern automotive systems and suitable for both professional workshops and mobile technicians.

Specifications

  • 4-Channel Automotive Oscilloscope with PicoBNC+™ Interface
  • High-speed USB 2.0 Connectivity (USB 3.0 compatible)
  • Measurement Range: Up to ±2000A (with current clamps)
  • Voltage Range: ±200V (direct measurement, greater with probes)
  • Bandwidth: Up to 20 MHz
  • Memory Buffer: 512 MS
  • Input Connectors: PicoBNC+ Smart Probe Technology
  • Free Lifetime Software Updates (PicoScope Automotive Software)

Features

  • Smart PicoBNC+™ probe recognition and auto-configuration
  • Flexible, guided tests for a wide variety of vehicle systems
  • Support for ignition, fuel injection, charging, starting, communications (CAN, FlexRay, LIN)
  • Rugged and portable design with protective casing
  • High sampling rates for detailed signal analysis
  • Extensive waveform library and reference comparisons
  • Designed for use in harsh workshop environments

Applications

  • Ignition system diagnostics (COP, distributor, secondary)
  • Fuel injector and fuel pump performance testing
  • Battery, starter, and alternator system analysis
  • Communication network troubleshooting (CAN, FlexRay, LIN)
  • Sensor signal analysis (MAP, MAF, crankshaft, camshaft sensors)
  • Actuator and solenoid testing
  • Hybrid and electric vehicle (HEV/EV) diagnostics
  • Waveform capture for intermittent fault analysis

Package Contents

PN DESCRIPTION QTY
DO336 PicoScope 4225A and 4425A Safety Guide 1
MI121 USB 2.0 Cable: PicoScope – blue, 4.5m 1
MI168 S hook 1
PA038 QuadroPack telescopic plastic case 2
PA209 Carry Case: 4425A Standard Case 1
PQ174 PicoScope 4425A 4ch Scope only, w/USB cable 1
TA310 Multimeter Style Test Probe – black 2
TA311 Multimeter Style Test Probe – red 2
TA003 Small crocodile clip – black 2
TA004 Small crocodile clip – red 2
TA008 Back-Pinning Probe set 1
TA017 4mm shrouded to unshrouded adaptor red 4
TA034 ATC/ATO Fuse Extension Lead 1
TA035 Mini Fuse Extension Lead 1
TA037 HT extension lead 2
TA106 Earth Wire for coil pack 45cm long 1
TA157 Battery clip 4mm socket (red) 2
TA158 Battery clip 4mm socket (black) 2
TA161 Flexible back pinning probe (black) 4
TA162 Flexible back pinning probe (red) 4
TA388 PicoBNC+ Current Clamp: 2000A AC/DC 1
TA397 PicoBNC+ Secondary Ignition Pickup 2
TA398 PicoBNC+ Coil On Plug (COP) & Signal Probe 1
TA404 PicoBNC+ Test Lead: 4mm permanent ground, 3m Blue 1
TA405 PicoBNC+ Test Lead: 4mm permanent ground 3m, Red 1
TA406 PicoBNC+ Test Lead: 4mm permanent ground 3m, Green 1
TA407 PicoBNC+ Test Lead: 4mm permanent ground 3m, Yellow 1
TA473 PicoBNC+ Current Clamp: 60A AC/DC 1
TA506 PicoBNC+ 10:1 Attenuating Test Lead 1
