Pico Technology PicoScope 4425A EV Kit (PQ194)

Pico PQ196 EV Kit

$5,727.00

In stock

SKU: PQ196 Category: Tags: , , , , Brand:

Description

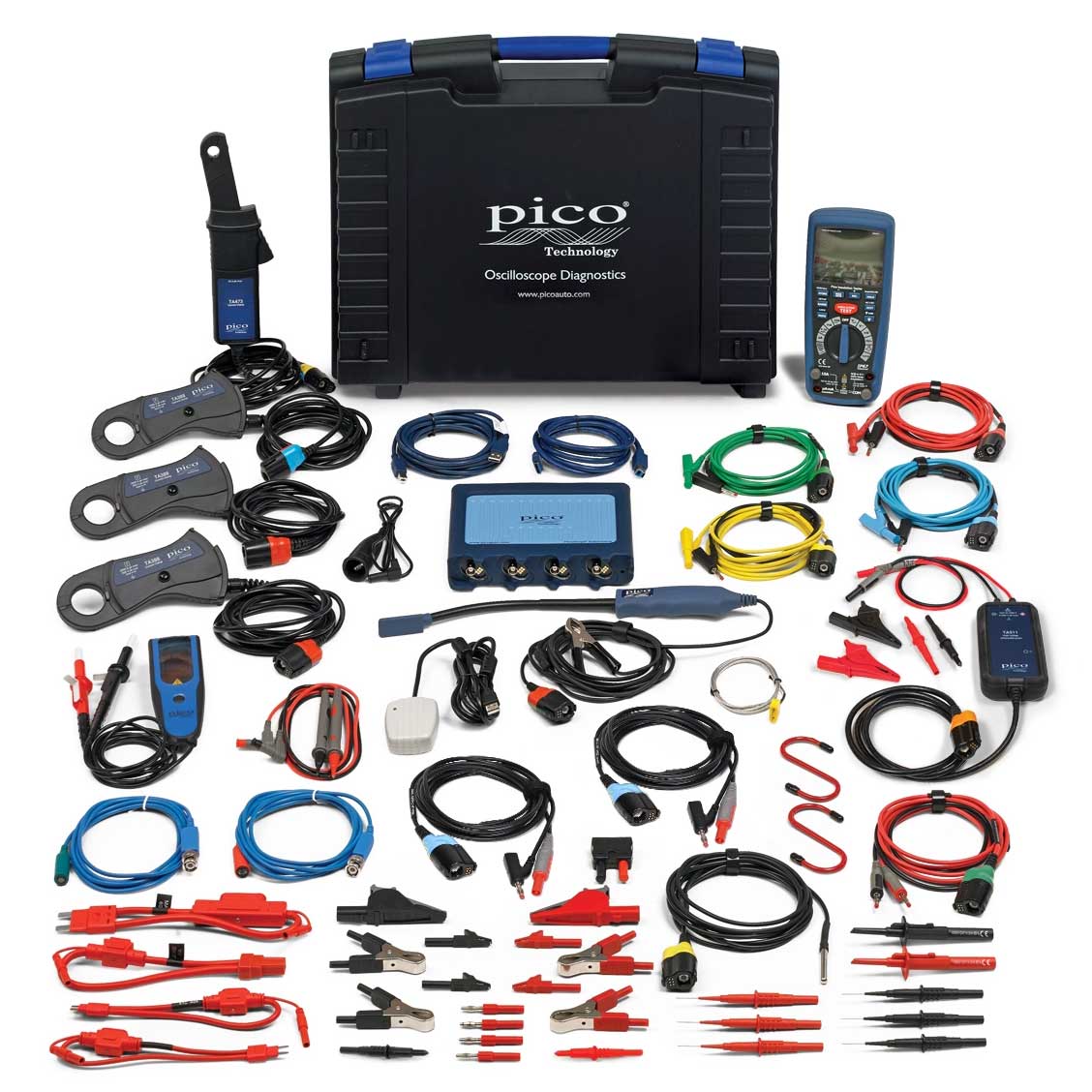

The PQ196 – PicoScope EV Kit is a comprehensive diagnostic package tailored for modern electric vehicles. Built around the 4-channel PicoScope 4425A, this kit includes a powerful suite of tools for testing high-voltage components, current flow, insulation, temperature, and advanced vehicle signals. Designed for professionals working with hybrid and battery electric vehicles (HEVs and BEVs), the kit offers advanced capabilities through PicoBNC+™ smart accessories and includes a range of safety-rated probes and measurement tools.

• PicoBNC+™ smart accessories: Auto-configuring test leads and sensors for intuitive setup and accurate readings.
• High-voltage and insulation testing tools: 1000V CAT III probes, attenuating leads, and an insulation tester for safe testing of high-voltage circuits.
• Specialty EV diagnostic tools: Including parking sensor and keyless entry detectors, temperature probes, and advanced current clamps.
• Multiple fuse extension leads: For accessing a wide variety of fuse types in modern vehicle systems.
• Protective storage: Includes both QuadroPack telescopic cases and a heavy-duty case for equipment organization and protection.

This kit supports a wide range of diagnostics across EV platforms and helps ensure compliance with safety and measurement standards in high-voltage environments.

Specifications

  • Oscilloscope: PicoScope 4425A, 4-channel automotive scope
  • Connectivity: USB 2.0 (includes 4.5m blue USB cable)
  • Leads: PicoBNC+™ smart leads and probes
  • Scope Safety Guide: Included for EV-specific applications
  • Storage: 2x QuadroPack telescopic cases, 1x heavy-duty case

Features

  • Designed for advanced diagnostics on hybrid and electric vehicles
  • Includes PicoBNC+™ probes for auto-recognition and simplified setup
  • Supports insulation, current, voltage, resistance, and temperature testing
  • Comprehensive fuse access and signal detection accessories
  • Multiple cases included for transport, protection, and organization

Applications

  • High-voltage safety testing on hybrid and electric vehicles
  • Current profiling and temperature monitoring of EV systems
  • Insulation testing and signal analysis in high-voltage circuits
  • CAN/LIN signal probing, coil-on-plug testing, and resistance measurement
  • Detection of parking sensors and keyless entry signals

Package Contents

PN DESCRIPTION QTY
DO336 PicoScope 4225A and 4425A Safety Guide 1
MI121 USB 2.0 Cable: PicoScope – blue, 4.5m 1
MI168 S hook 2
PA038 QuadroPack telescopic plastic case 2
TA003 Small crocodile clip – black 2
TA004 Small crocodile clip – red 2
TA005 Large Dolphin Clip 1000v CATIII – black 1
TA006 Large Dolphin Clip 1000v CATIII – red 1
TA017 4mm shrouded to unshrouded adaptor red 4
TA034 ATC/ATO Fuse Extension Lead 1
TA157 Battery clip 4mm socket (red) 2
TA158 Battery clip 4mm socket (black) 2
TA035 Mini Fuse Extension Lead 1
PQ174 PicoScope 4425A 4ch Scope only, w/USB cable 1
TA168 JCASE Fuse Extension Lead 1
TA206 Maxi Fuse Extension Lead 1
TA329 Ultrasonic parking sensor detector 1
TA330 Keyless entry carrier signal detector 1
TA388 PicoBNC+ Current Clamp: 2000A AC/DC 3
TA395 PicoBNC+ wide-range linear temperature probe 1
TA398 PicoBNC+ Coil On Plug (COP) & Signal Probe 1
TA404 PicoBNC+ Test Lead: 4mm permanent ground, 3m Blue 1
TA405 PicoBNC+ Test Lead: 4mm permanent ground 3m, Red 1
TA406 PicoBNC+ Test Lead: 4mm permanent ground 3m, Green 1
TA407 PicoBNC+ Test Lead: 4mm permanent ground 3m, Yellow 1
TA432 PicoBNC+ Resistance Test Lead 1
TA466 Pico 2-pole voltage detector 1
TA473 PicoBNC+ Current Clamp: 60A AC/DC 1
TA558 1000V Back pinning probe (black) 3
TA559 1000V Back pinning probe (red) 3
TA467 Pico Insulation Tester 1
PA210 Carry Case:4425A Heavy Duty Case 1
TA506 PicoBNC+ 10:1 Attenuating Test Lead 2
PQ345 PicoBNC+ 1400V Differential Probe Kit 1
