TOPDON TC001 Plus

$279.00

In stock

SKU: TC001PLUS Category: Tags: , , , , , , , Brand:

Description

5″ Thermal Imaging Camera Tablet 256×192 Resolution
The TOPDON TC001 Plus is a compact, dual-lens thermal imaging camera designed for professionals requiring precise thermal analysis. With a 256×192 IR resolution, 25Hz refresh rate, and advanced image fusion technology, it delivers clear thermal visuals, making it ideal for various diagnostic applications.

Specifications

  • Model: TC001 Plus
  • Infrared Resolution: 256 x 192 pixels
  • Visible Light Camera: 1MP (100W) lens
  • Frame Rate: 25Hz
  • Temperature Range: -4°F to 1022°F (-20°C to 550°C)
  • Accuracy: ±2°C or ±2% of reading
  • Temperature Resolution: 0.1°C (0.1°F)
  • Thermal Sensitivity (NETD): <40mK

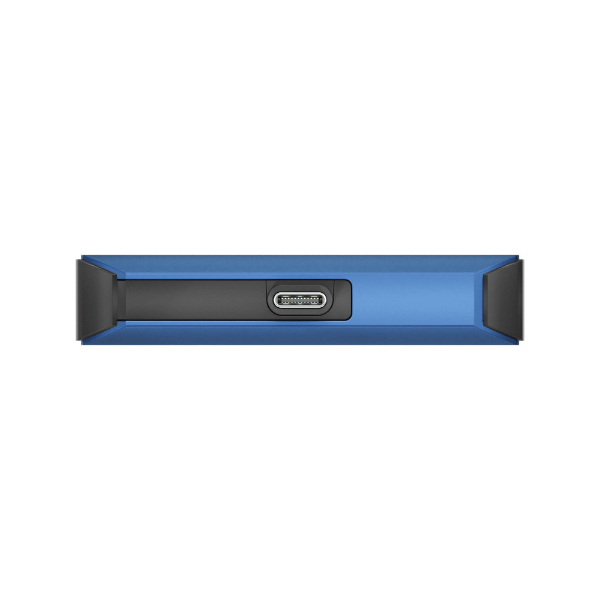

  • Connectivity: USB-C
  • Compatibility: Android devices and Windows PCs
  • Dimensions: 2.8 x 1.65 x 0.55 inches (71 x 42 x 14 mm)
  • Weight: 1 oz (30g)
  • Durability: Drop-resistant up to 1 meter
  • Software: Compatible with TCView desktop software and TopInfrared app

Features

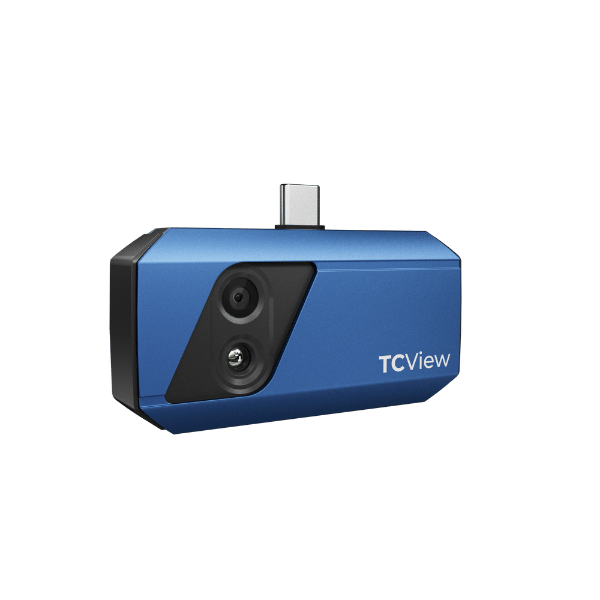

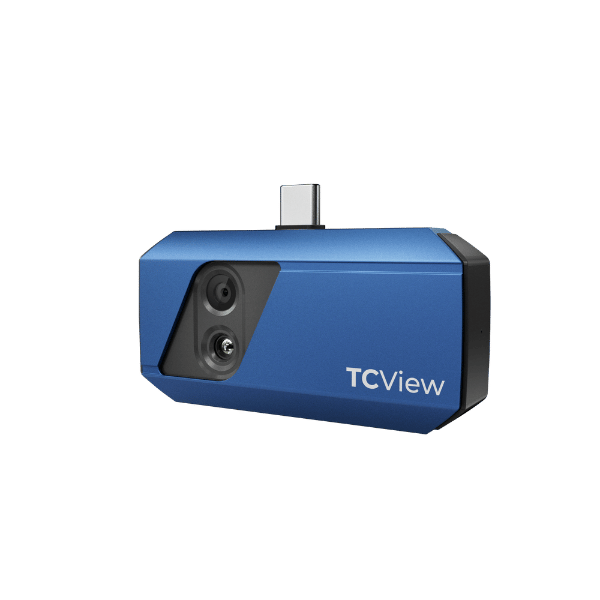

  • Dual-Lens Imaging: Combines a 1MP visible light lens with an infrared lens using image fusion technology to capture targets in original colors and reveal their contours, eliminating any trace of fuzziness.
  • High-Resolution Thermal Imaging: 256×192 IR resolution with a 25Hz refresh rate ensures smooth, non-lagging image display, making it easier to identify and analyze details of the targets.
  • Extensive & Accurate Temperature Measurement: Measures temperatures from -4°F to 1022°F (-20°C to 550°C) with ±2°C or ±2% accuracy and a resolution of 0.1°C.
  • Continuous Measurement Capabilities: Generates waveform graphs for intuitive monitoring and facilitates detailed analysis of temperature variations.
  • Portable & Durable Design: Compact and lightweight, measuring just 2.8 x 1.65 x 0.55 inches and weighing 1 oz, with a rugged design that withstands drops of up to 1 meter.
  • Advanced Software Integration: Works with TCView desktop software and TopInfrared app for detailed reports, pixel temperature charts, and customizable alarms.

Applications

  • Electrical Inspections: Identify overheating components, faulty connections, and circuit issues.
  • HVAC System Analysis: Detect temperature variations in heating and cooling systems for maintenance and troubleshooting.
  • Building Inspections: Locate insulation deficiencies, moisture intrusion, and structural anomalies.
  • Automotive Diagnostics: Assess engine performance, brake systems, and electrical components.
  • Agricultural Monitoring: Evaluate crop health, livestock conditions, and equipment performance.
  • Engineering Applications: Monitor machinery and equipment for overheating and preventive maintenance.
