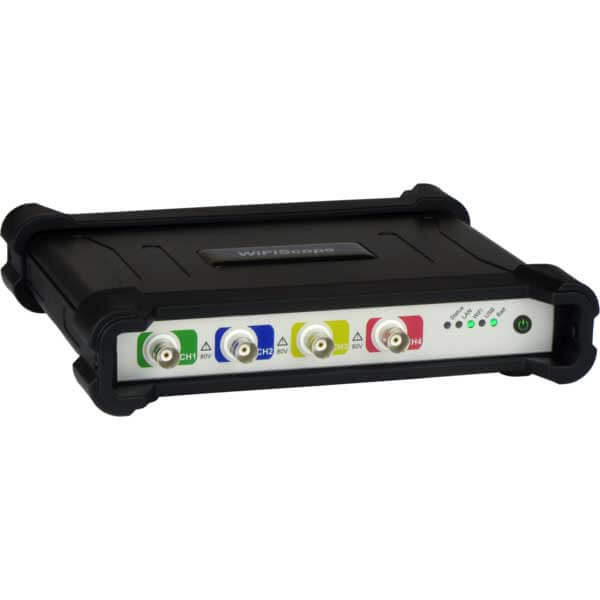

WiFiScope WS4 DIFF

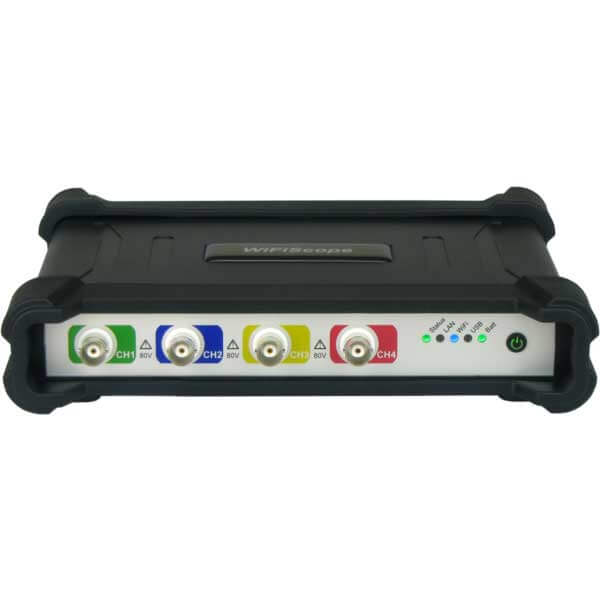

WiFiScope WS4 DIFF Front

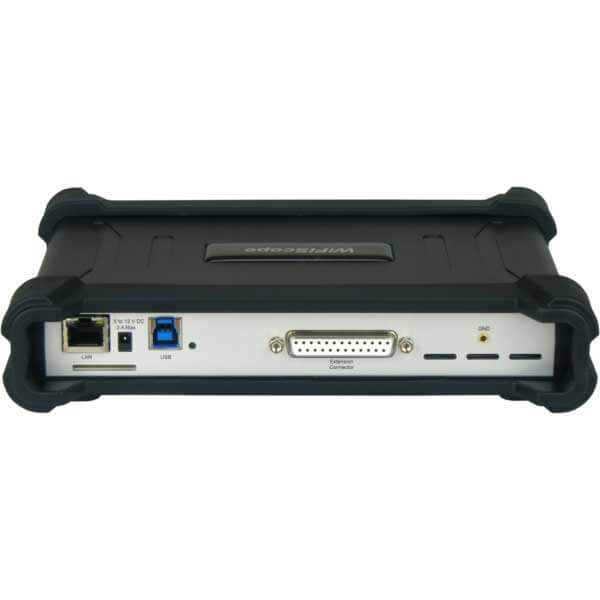

WiFiScope WS4 DIFF Rear

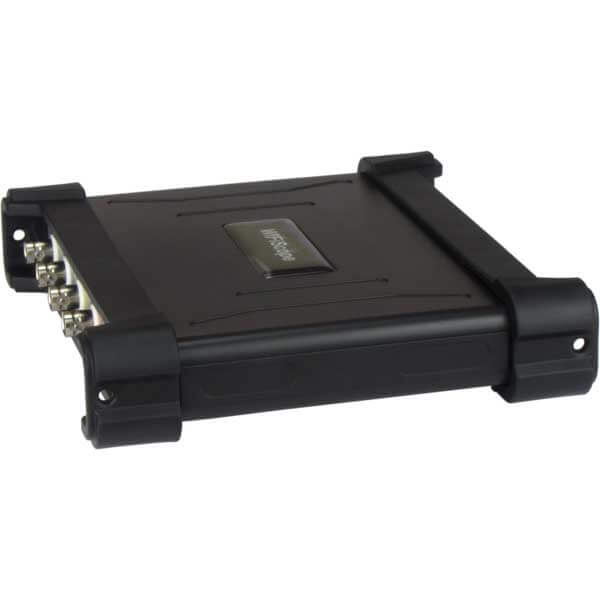

WiFiScope WS4 DIFF Frontside

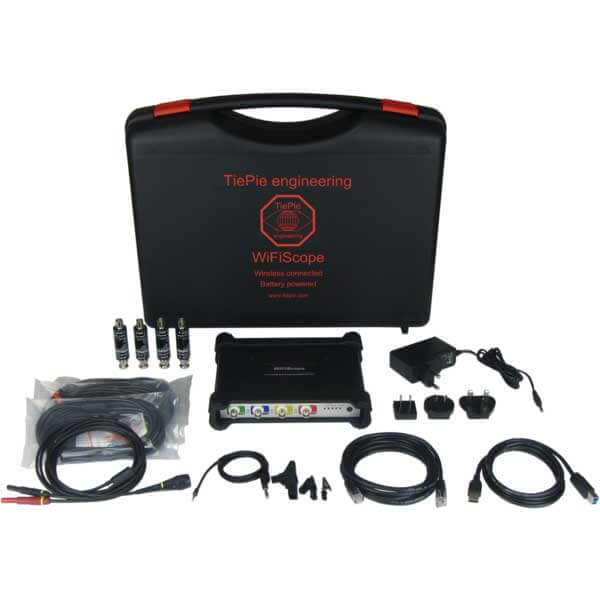

WiFiScope WS4 DIFF Complete Set

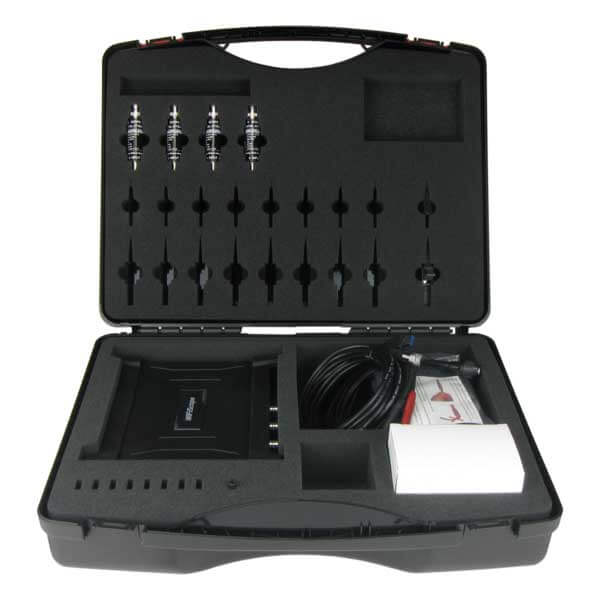

WiFiScope WS4 DIFF In Case

WiFiScope WS4 DIFF

$2,342.68 – $2,863.54 (converted)

Choose the model and warranty below:

SKU: N/A Category: Brand:

Description

A differential WiFi oscilloscope

A differential 4 channel, 50 MHz WiFi oscilloscope from TiePie engineering.

Key specifications

  • Differential inputs
  • 12, 14, 16 bit resolution, 0.3 % DC accuracy
  • Up to 50 MSa/s sampling, 50 MHz bandwidth
  • 128 k-points memory per channel

The WiFiScope WS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MSa/s and 128 k-points memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The WiFiScope WS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications.

Rugged industrial design

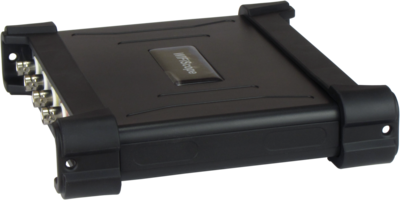

WiFiScope Front sideview

The WiFiScope WS4 DIFF features a rugged design. Its enclosure is fitted with rubber protectors at the front and the rear. These protect the WiFiScope WS4 DIFF against damage by mechanical shocks. The rubber helps absorbing shocks and protects the connectors at the front and the rear of the WiFiScope WS4 DIFF, these fall within the protected zone.

Additionally, the rubber prevents your WiFiScope WS4 DIFF from sliding. The rubber protectors have special notches that simplify stacking instruments. Holes are included that allow to connect a strap to hang the instrument near the test subject.

Differential inputs

Diff input

The WiFiScope WS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters etc. No more risk of creating short circuits through your oscilloscope!

Fast continuous streaming

WiFiScope Front sideview

Besides measuring in block mode as oscilloscope, the WiFiScope WS4 DIFF is also capable of performing continuous streaming measurements as data logger. This will create a continuous uninterrupted data stream to the computer. The data can then be displayed on the screen and/or saved to disk.



Network Connected

WiFi connected

Using a computer based oscilloscope was never easier than with the WiFiScope WS4 DIFF: simply switch it on and start the software on the computer:

  • no power cables required as it is battery powered and can operate hours on a fully charged battery
  • no interface cables required as it uses WiFi to connect to the computer

This allows you to measure fully floating, fully isolated from your computer. The WiFiScope WS4 DIFF can be placed near any test subject that may be hard to reach, or on moving objects, where wired connections are not possible.

Because the WiFiScope WS4 DIFF is not connected to the computer, there is no risk of damaging the computer.

LAN connected

LAN

When measuring in remote locations where a wired network is available, the WiFiScope WS4 DIFF can also be used through its LAN port. Measurements can then be performed from any location via the network, without having the computer to be close to the test subject.

Using its 1 Gbit LAN connection, the WiFiScope WS4 DIFF can achieve higher streaming performance than via WiFi.

USB 3.0 connected

USB

When wireless measuring or LAN connected measuring is not required or not possible, the WiFiScope WS4 DIFF can also be connected via its USB3 port. This gives the benefit of even higher streaming performance.

Features

Versatile Multi Channel oscilloscope software

The WiFiScope WS4 DIFF is delivered with the versatile Multi Channel oscilloscope software, which transforms the WiFiScope WS4 DIFF into an oscilloscope, spectrum analyzer, data logger, multimeter and protocol analyzer.

Some of the powerful features of the Multi Channel oscilloscope software are indicated below, for a full description of the Multi Channel oscilloscope software, refer to the Multi Channel oscilloscope software pages.

Quick Setup

To simplify setting up the measurements, the Multi Channel oscilloscope software contains a large number of Quick Setups, for almost any application. A Quick Setup contains the basic settings for a specific measurement as well as additional information regarding the selected Quick Setup, like e.g. how your Handyscope and/or accessories need to be connected. Quick Setups can also contain reference signals. After loading the Quick Setup, that specific measurement can be performed and if needed, small adjustments to the setup can be made.

The Quick Setups are carefully organized in a tree structure, ordered by application. Just a few mouse clicks allow to perform a complex measurement.

Flexible signal displays

The Multi Channel oscilloscope software scope, spectrum analyzer and datalogger offer an ultimately flexible way to display all aspects of the measured signals. They can have one or more graphs, each displaying one or more signals, where each graph can display different parts of a signal. Graphs can display the signal(s) of your Handyscope in Yt mode, in XY mode or as frequency spectrum, with or without interpolation. Colors of all items in a graph can be set to any required value. Graph dimensions can be adjusted to any required size, graphs can be located in one single window or in separate windows, which can be located anywhere on the desktop.

Touchscreen friendly toolbars

An oscilloscope toolbar and channel toolbars are available for each detected Handyscope. The convenient toolbars provide clear buttons for all settings of the oscilloscope and its channels. They show the current settings of the oscilloscope and allow to change all settings. The large buttons are very suitable for touchscreen operation.

The toolbars are fully configurable through the program settings. You can set the button size, add or remove buttons and change the order of the buttons.

Many automatic measurements

The Multi Channel oscilloscope software features many automatic measurements, that can be performed on the measured signals of your Handyscope or on a selection of the measured signals. Using the automatic measurements in the oscilloscope, any detail of your signal is revealed. Two sets of cursors, both horizontal and vertical, can be used to indicate a part of the signal that needs to be examined thoroughly. The automatic measurements include e.g.: Mininum, Maximum, Top-Bottom, RMS, Mean, Variance, Standard deviation, Frequency.

The measurement results are shown in a special value window that can be positioned anywhere on your computer screen. A convenient toolbar allows you to enable or disable a measurement with a single click. The measurement results can be copied to the clipboard e.g. to use them in reports. When printing the graphs, the cursors and measurements results are also included.

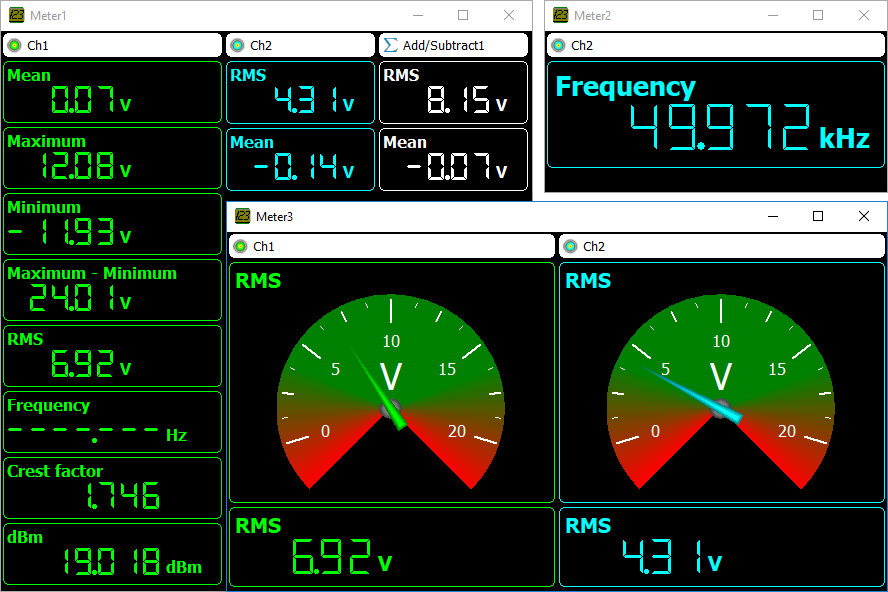

Multimeter

The multimeter in the Multi Channel oscilloscope software turns your Handyscope into a multimeter can be used to measure or monitor specific properties of a signal, like True RMS value, frequency, maximum value etc. The Multi Channel oscilloscope software multimeter can have any number of fully configurable displays, either displaying the measured value as a number or using a gauge display. When using a gauge display, it can be very helpful when adjusting a circuit for a specific property, e.g. adjusting an offset to zero.

More features

To discover more features of the comprehensive Multi Channel oscilloscope software for your WiFiScope WS4 DIFF, visit the Multi Channel oscilloscope software pages for a full description.

Specifications

Acquisition system
Number of input channels 4 analog
Ch1, Ch2, Ch3, Ch4 Isolated female BNC
Type Differential
Resolution User selectable in software
Native 12 bit
Enhanced 14, 16 bit
Accuracy 0.3 % of full scale ± 1 LSB
Ranges (Full scale) ±200 mV
±400 mV
±800 mV		 ±2 V
±4 V
±8 V		 ±20 V
±40 V
±80 V
Coupling AC/DC
Impedance 2 MΩ / 40 pF
Noise 135 µVrms (200 mV range, 12 bit, 50 MSa/s)
50 µVrms (200 mV range, 16 bit, 195 kSa/s)
Maximum input voltage (in all ranges) ±200 V (DC + AC peak < 10 kHz)
with 1:10 attenuator ±300 V (DC + AC peak < 10 kHz)
Maximum Common Mode voltage 200 mV to 800 mV ranges : 2 V
2 V to 8 V ranges : 20 V
20 V to 80 V ranges : 200 V
Common Mode Rejection Ratio -48 dB
Bandwidth (-3dB) DC to 50 MHz maximum
AC coupling cut off frequency (-3dB) 1 Hz
Channel Isolation 500 V
Channel Separation -80 dB
Maximum sampling rate WS4 DIFF-50 WS4 DIFF-25
12 bit 50 MSa/s 25 MSa/s
14 bit 3.125 MSa/s 3.125 MSa/s
16 bit 195.3 kSa/s 195.3 kSa/s
Maximum streaming rate WS4 DIFF-50 WS4 DIFF-25
12 bit 500 kSa/s 250 kSa/s
14 bit 480.8 kSa/s 250 kSa/s
16 bit 195.3 kSa/s 195.3 kSa/s
Sampling clock source
Internal Quartz
Accuracy ±0.01 %
Stability ±100 ppm over -40 °C to +85 °C
Time base aging ±5 ppm/year
External On extension connector
Voltage 3.3 V TTL, 5 V TTL tolerant
Frequency range 95 MHz to 105 MHz
Memory 128 kpoints per channel
Trigger Only available in scope/block mode, not in streaming mode
System Digital, 2 levels
Source CH1, CH2, CH3, CH4, OR, digital external
Trigger modes Rising edge, Falling edge
Inside window, Outside window
Level adjustment 0 to 100 % of full scale
Hysteresis adjustment 0 to 100 % of full scale
Resolution 0.025 % (12 bits)
Pre trigger 0 to 131071 samples, 1 sample resolution
Post trigger 0 to 131071 samples, 1 sample resolution
Trigger hold-off 0 to 1048576 Samples, 1 sample resolution
Digital external trigger
Input Extension connector
Range 0 to 3.3 V (5 V max)
Coupling DC

Interface
Interface
USB 2.0 High Speed (480 Mbit/s)
Network
LAN 1 Gbps
WiFi 802.11
Network port (TCPIP and UDP) 5450 (IANA assigned)

Power Requirements
Power From USB, external input or built-in battery
Consumption 12 VDC 2 A max
External power From power adapter
Internal battery Li-ion
Capacity 7000 mAh, 3.7 V
Weight 160 g

Physical
Instrument
Height 44 mm (1.7 inch)
Length 187 mm (6.7 inch)
Width 215 mm (5.2 inch)
Weight 791 g (27.9 ounce)

I/O connectors
Channel 1…4 Isolated BNC, female
LAN RJ45 socket
USB USB 3.0 type B Super Speed socket
Extension connector D-sub 25 pins female
Power 3.5 mm power socket

System Requirements
PC I/O connection USB 2.0, USB 3.0 or USB 3.1
RJ45
WiFi
Operating System Windows 10 / 11, 64 bits
Linux (via own software using the libtiepie-hw SDK)

Operating Environment
Ambient temperature Relative humidity
Operating (with charging) 20°C to 25°C for rated accuracy
(10°C to 30°C without specifications)		 10 % to 90 %, non condensing
Operating (without charging) 20°C to 25°C for rated accuracy
(10°C to 35°C without specifications)		 10 % to 90 %, non condensing
Only charging 0°C to 35°C 10 % to 90 %, non condensing
Storage 0°C to 35°C 5 % to 95 %, non condensing

Certifications and Compliances
CE mark compliance Yes
RoHS Yes
EN 55011:2009/A1:2010 Yes
EN 55022:2006/A1:2007 Yes
EN 61000-6-1:2007 Yes
EN 61000-6-3:2007 Yes

Package
Convenient carrying case Carry case BB453
Instrument WiFiScope WS4 DIFF
Measure leads 4 x Measure lead TP-C812B, BNC -> 4 mm banana plug
Differential attenuator 4 x Differential attenuator TP-DA10
Accessories Ground compensation Cable TP-GCC150
Handyscope / WiFiScope power supply
USB3 cable, 1.5 m long
network cable, 3 m long
Software Windows 10 / 11, 64 bits, via website
Drivers Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manual instrument manual and software user’s manuals
color printed and digital, via website
Total package weight Approx. 3 kg

Customer service
TiePie engineering instruments are designed, manufactured and tested to provide high reliability. In the unlikely event you experience difficulties, the TiePie engineering instruments are fully warranted for two years.
This warranty includes All parts and labor (excluding probes and/or measure leads and/or batteries)
Warranty on batteries is 6 months.
No charge for return shipping
Long-term 7 year support
Upgrade to the latest software at no charge
Optionally available Extension to five year warranty, option W5

Models

The WiFiScope WS4 DIFF is available in 2 different base models:

Order code Max. sampling speed Max. streaming speed
WS4-DIFF-50 50 MSa/s 500 KSa/s
WS4-DIFF-25 25 MSa/s 250 KSa/s

Available options for the WiFiScope WS4 DIFF are:

  • W5: With the extended warranty option, warranty is five years on parts and labor (probes and/or measure leads and/or batteries excluded).
    Without this option, the models have two years warranty on parts and labor (probes and/or measure leads and/or batteries excluded).
    Warranty on batteries is 6 months.

Package contents

The WiFiScope WS4 DIFF is delivered with:

Carry case Carry case BB453
Instrument WiFiScope WS4 DIFF
Measure lead 4x Measure lead TP-C812B, Differential BNC -> 4 mm banana plug
Attenuator 4x Differential attenuator TP-DA10
Accessories Ground compensation Cable TP-GCC150
Handyscope / WiFiScope power supply
USB3 cable, 1.5 m long
network cable, 3 m long
Software for Windows 10 / 11, 64 bits, via website
Drivers for Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manuals instrument manual and software user’s manuals
color printed and digital, via website

Downloads

Several downloads for the WiFiScope WS4 DIFF are listed below, including Multi Channel oscilloscope software, drivers and manuals.

Driver & Software

Description Version Remarks Size
WinUSB driver 10.0.2 Windows 10 / 11, 64 bit 1.73 MB download
Multi Channel software 1.48.0 Windows 10 / 11, 64 bit, including PDF manual 104.80 MB download

Firmware

Description Version Remarks Size
WiFiScope network module firmware 2025-02-11 304.09 MB download

Manuals & Documents

Description Version Remarks Size
Multi Channel software manual 1.11 English 3.13 MB download
WiFiScope Quick Start Guide English 2.55 MB download
WiFiScope WS4 DIFF Instrument manual 2.52 English 1.27 MB download
WiFiScope WS4 DIFF data sheet English 2.07 MB download

Software Development Kit (SDK)

Interfacing the WiFiScope WS4 DIFF with third party software and developing own software
requires the libtiepie-hw Software Development Kit.
Detailed information on the libtiepie-hw SDK, downloads for Windows and Linux platforms and bindings and programming
examples for various programming environments can be found in the libtiepie-hw pages.
