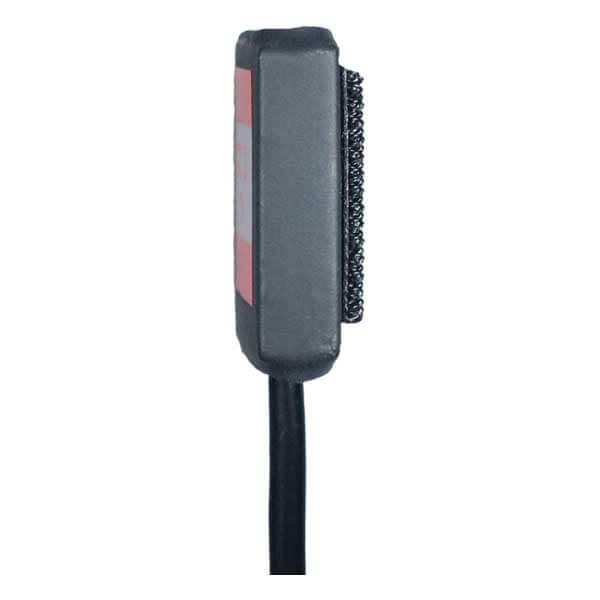

Accelerometer TP-ACC20 Sensor Side

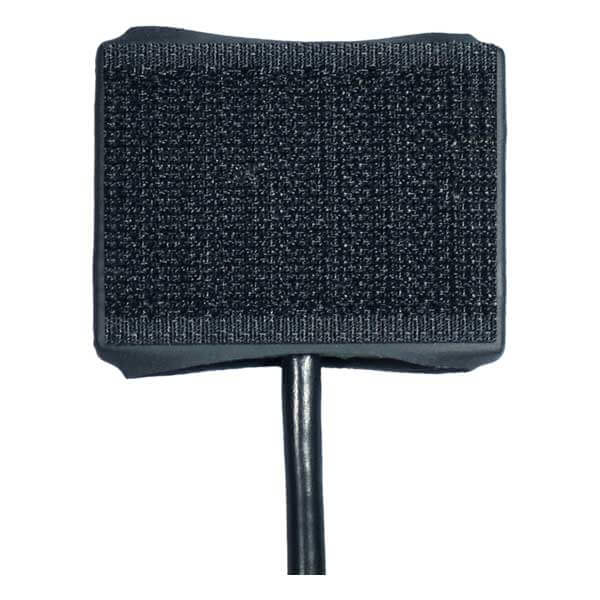

Accelerometer TP-ACC20 Sensor Back
Accelerometer TP-ACC20 Trigger Button

Accelerometer TP-ACC20

$469.58 (converted)

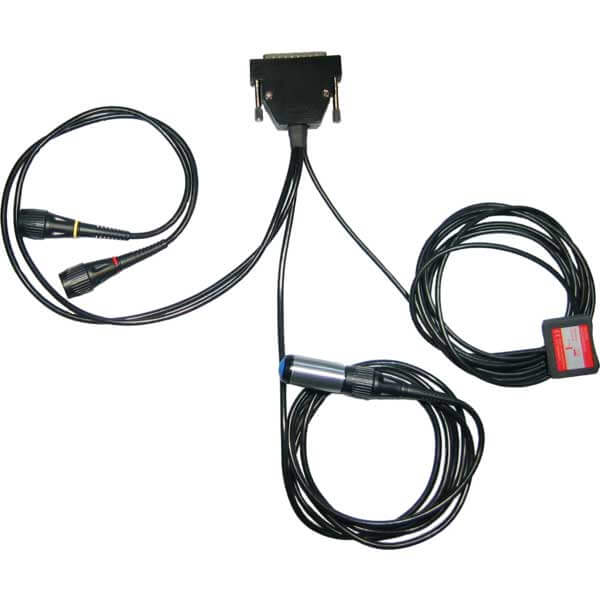

The Accelerometer TP-ACC20 is a dual axis accelerometer combined with a manual, external trigger button, designed to be used with the Automotive Test Scope ATS5004D, Automotive Test Scope ATS5004DW  (order code TP-ACC20-25) and Automotive Test Scope ATS610004DW-XMSG, Automotive Test Scope ATS610004D-XMSG, Automotive Test Scope ATS605004DW-XMS, Automotive Test Scope ATS605004D-XMS (order code TP-ACC20-09). The dual accelerometer is a low power dual axis accelerometer with voltage outputs. It can measure accelerations in two axes, up to ± 2 g. It can measure both dynamic acceleration and static acceleration (gravity). The manual external trigger button can be used to trigger measurements in situations where no trigger condition can be derived from the input signals.

Choose the option below:

SKU: TP-ACC20 Category: Brand:

Description

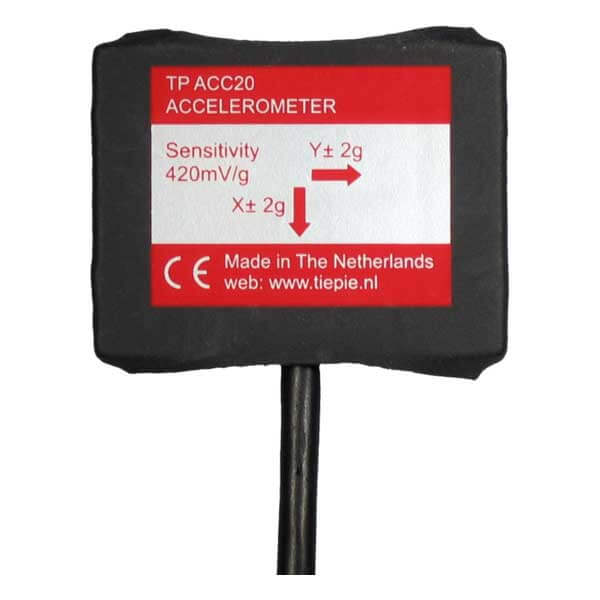

Accelerometer TP-ACC20 sensor front

The acceleration sensor of the Accelerometer TP-ACC20 is placed in a small package with a long, thin flexible cable. The package contains strong magnets to attach the sensor to magnetic (steel) surfaces without the need of screws or clamps. One side of the package contains a patch of velcro, to attach the sensor to fabric surfaces.

The Accelerometer TP-ACC20 also contains a manual trigger button. This button can be used to manually trigger measurements in situations where no trigger condition can be derived from the input signals. The manual trigger button has a solid aluminum body and is fitted with a female BNC connector. A long flexible cable with a male BNC connector is used to connect the button to the instrument.

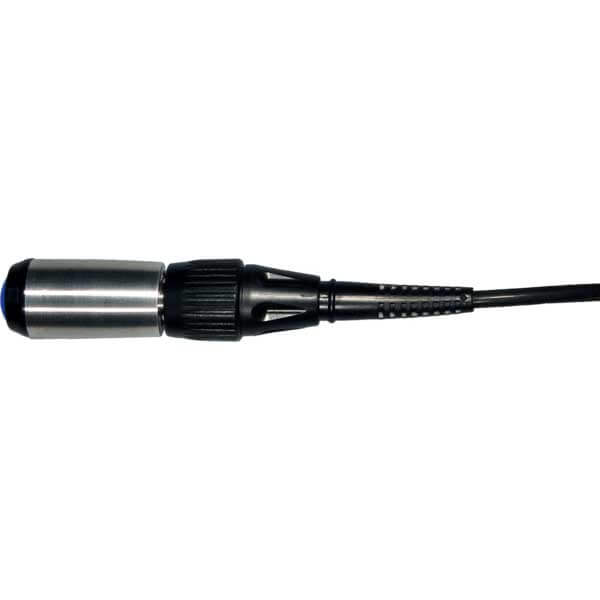

Accelerometer TP-ACC20 trigger button



Specifications

The table below shows detailed specifications of the Accelerometer TP-ACC20.

Accelerometer sensor
Sensor input range ± 2 g
Sensitivity 420 mV/g typical
Zero g bias level 1.5 V typical
Zero g offset vs. temperature < ± 0.5 mg/°C
Bandwidth 500 Hz
Sensor resonant frequency 5.5 kHz typical
Power supply from instrument extension connector, < 0.5 mA
Dimensions
Width 35 mm
Height 30 mm
Thickness 9 mm
Weight 20 g
Cable length 2.5 m

Manual external trigger button
Dimensions
Length (without cable) 47 mm
Diameter 18 mm
Connector at button female BNC connector
Connector at cable isolated male BNC connector
Cable length 2 m

Instrument connector
TP-ACC20-09 TP-ACC20-25
Connector type 9 pin male D-Sub connector 25 pin male D-Sub connector
Suitable instruments Automotive Test Scope ATS610004DW-XMSG
Automotive Test Scope ATS605004DW-XMS
Automotive Test Scope ATS610004D-XMSG
Automotive Test Scope ATS605004D-XMS		 Automotive Test Scope ATS5004DW
Automotive Test Scope ATS5004D
Accelerometer sensor signal connection 2
Connection isolated male BNC connector
Cable length 50 cm
Total weight 200 g



Models

The Accelerometer TP-ACC20 is available in 2 models with different connectors, a 25 pin and a 9 pin D-sub connector.

Order code EAN Price
TP-ACC20-25 7423621853849 € 403.70
TP-ACC20-09 7423629642681 € 403.70

The Accelerometer TP-ACC20 – 09 can be used with the:

  • Automotive Test Scope ATS605004D-XMS
  • Automotive Test Scope ATS610004D-XMSG
  • Automotive Test Scope ATS605004DW-XMS
  • Automotive Test Scope ATS610004DW-XMSG

The Accelerometer TP-ACC20 – 25 can be used with the:

  • Automotive Test Scope ATS5004D
  • Automotive Test Scope ATS5004DW

Downloads

Description Version Remarks Size
Accelerometer TP-ACC20 user manual 1.3 English 875.29 kB download
